Home > Products > REVO SPORT

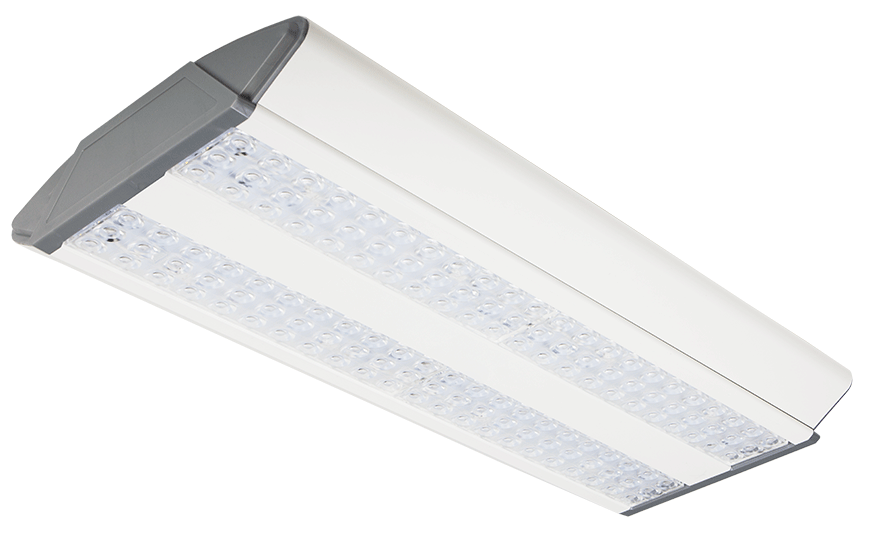

REVO SPORT

Sports hall, high output luminaire

  • Available in 3 sizes and 7 outputs
  • High output LED high bay, ideal for large indoor sports areas
  • Fixed via rear suspension holes and wired via plug-in 3 pole terminal block
  • Unique ball bearing suspension kit with 'Y'piece adjuster
  • Gear options including DALI and emergency available
  • Hinged side plates for easy access and maintenance
  • Impact resistant construction
  • Uniform light level in daylight
  • Unique power entry access for easy and quick installation
  • CRI: Ra>80
  • Extruded aluminium body finished in white (RAL 9016)
  • Polycarbonate end caps
  • Supplied as standard with neutral white (4000K) LED
  • Up to 150 lumens per Watt efficacy
IP20IK10Electrical class 15 Year Warranty
≤30K lm
≤205 W
≤150 lm/W
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W L(mm) W(mm) D(mm)
RVS1200NW 80W - 4000K 12000 80 150 1200 300 75
RVS1200NWA3 80W - 4000K 12000 80 150 1200 300 75
RVS1200NWD 80W - 4000K 12000 80 150 1200 300 75
RVS1200NWD3 80W - 4000K 12000 80 150 1200 300 75
RVS1200NWDA3 80W - 4000K 12000 80 150 1200 300 75
RVS1200NWDD3 80W - 4000K 12000 80 150 1200 300 75
RVS1200NWDM3 80W - 4000K 12000 80 150 1200 300 75
RVS1200NWM3 80W - 4000K 12000 80 150 1200 300 75
RVS1500NW 100W - 4000K 15000 100 150 1200 300 75
RVS1500NWA3 100W - 4000K 15000 100 150 1200 300 75
RVS1500NWD 100W - 4000K 15000 100 150 1200 300 75
RVS1500NWD3 100W - 4000K 15000 100 150 1200 300 75
RVS1500NWDA3 100W - 4000K 15000 100 150 1200 300 75
RVS1500NWDD3 100W - 4000K 15000 100 150 1200 300 75
RVS1500NWDM3 100W - 4000K 15000 100 150 1200 300 75
RVS1500NWM3 100W - 4000K 15000 100 150 1200 300 75
RVS1800NW 120W - 4000K 18000 120 150 1200 300 75
RVS1800NWA3 120W - 4000K 18000 120 150 1200 300 75
RVS1800NWD 120W - 4000K 18000 120 150 1200 300 75
RVS1800NWD3 120W - 4000K 18000 120 150 1200 300 75
RVS1800NWDA3 120W - 4000K 18000 120 150 1200 300 75
RVS1800NWDD3 120W - 4000K 18000 120 150 1200 300 75
RVS1800NWDM3 120W - 4000K 18000 120 150 1200 300 75
RVS1800NWM3 120W - 4000K 18000 120 150 1200 300 75
RVS2100NW 140W - 4000K 21000 140 150 1500 300 75
RVS2100NWA3 140W - 4000K 21000 140 150 1500 300 75
RVS2100NWD 140W - 4000K 21000 140 150 1500 300 75
RVS2100NWD3 140W - 4000K 21000 140 150 1500 300 75
RVS2100NWDA3 140W - 4000K 21000 140 150 1500 300 75
RVS2100NWDD3 140W - 4000K 21000 140 150 1500 300 75
RVS2100NWDM3 140W - 4000K 21000 140 150 1500 300 75
RVS2100NWM3 140W - 4000K 21000 140 150 1500 300 75
RVS2400NW 160W - 4000K 24000 160 150 1500 300 75
RVS2400NWA3 160W - 4000K 24000 160 150 1500 300 75
RVS2400NWD 160W - 4000K 24000 160 150 1500 300 75
RVS2400NWD3 160W - 4000K 24000 160 150 1500 300 75
RVS2400NWDA3 160W - 4000K 24000 160 150 1500 300 75
RVS2400NWDD3 160W - 4000K 24000 160 150 1500 300 75
RVS2400NWDM3 160W - 4000K 24000 160 150 1500 300 75
RVS2400NWM3 160W - 4000K 24000 160 150 1500 300 75
RVS3000NW 205W - 4000K 30000 205 146 1500 300 75
RVS3000NWA3 205W - 4000K 30000 205 146 1500 300 75
RVS3000NWD 205W - 4000K 30000 205 146 1500 300 75
RVS3000NWD3 205W - 4000K 30000 205 146 1500 300 75
RVS3000NWDA3 205W - 4000K 30000 205 146 1500 300 75
RVS3000NWDD3 205W - 4000K 30000 205 146 1500 300 75
RVS3000NWDM3 205W - 4000K 30000 205 146 1500 300 75
RVS3000NWM3 205W - 4000K 30000 205 146 1500 300 75
RVS900NW 60W - 4000K 9000 60 150 600 300 75
RVS900NWA3 60W - 4000K 9000 60 150 600 300 75
RVS900NWD 60W - 4000K 9000 60 150 600 300 75
RVS900NWD3 60W - 4000K 9000 60 150 600 300 75
RVS900NWDA3 60W - 4000K 9000 60 150 600 300 75
RVS900NWDD3 60W - 4000K 9000 60 150 600 300 75
RVS900NWDM3 60W - 4000K 9000 60 150 600 300 75
RVS900NWM3 60W - 4000K 9000 60 150 600 300 75
RVSW1200NW 12000 80 150 1200 300 75
RVSW1200NWA3 12000 80 150 1200 300 75
RVSW1200NWD 12000 80 150 1200 300 75
RVSW1200NWD3 12000 80 150 1200 300 75
RVSW1200NWDA3 12000 80 150 1200 300 75
RVSW1200NWDD3 12000 80 150 1200 300 75
RVSW1200NWDM3 12000 80 150 1200 300 75
RVSW1200NWM3 12000 80 150 1200 300 75
RVSW1500NW 15000 100 150 1200 300 75
RVSW1500NWA3 15000 100 150 1200 300 75
RVSW1500NWD 15000 100 150 1200 300 75
RVSW1500NWD3 15000 100 150 1200 300 75
RVSW1500NWDA3 15000 100 150 1200 300 75
RVSW1500NWDD3 15000 100 150 1200 300 75
RVSW1500NWDM3 15000 100 150 1200 300 75
RVSW1500NWM3 15000 100 150 1200 300 75
RVSW1800NW 18000 120 150 1200 300 75
RVSW1800NWA3 18000 120 150 1200 300 75
RVSW1800NWD 18000 120 150 1200 300 75
RVSW1800NWD3 18000 120 150 1200 300 75
RVSW1800NWDA3 18000 120 150 1200 300 75
RVSW1800NWDD3 18000 120 150 1200 300 75
RVSW1800NWDM3 18000 120 150 1200 300 75
RVSW1800NWM3 18000 120 150 1200 300 75
RVSW2100NW 21000 140 150 1500 300 75
RVSW2100NWA3 21000 140 150 1500 300 75
RVSW2100NWD 21000 140 150 1500 300 75
RVSW2100NWD3 21000 140 150 1500 300 75
RVSW2100NWDA3 21000 140 150 1500 300 75
RVSW2100NWDD3 21000 140 150 1500 300 75
RVSW2100NWDM3 21000 140 150 1500 300 75
RVSW2100NWM3 21000 140 150 1500 300 75
RVSW2400NW 24000 160 150 1500 300 75
RVSW2400NWA3 24000 160 150 1500 300 75
RVSW2400NWD 24000 160 150 1500 300 75
RVSW2400NWD3 24000 160 150 1500 300 75
RVSW2400NWDA3 24000 160 150 1500 300 75
RVSW2400NWDD3 24000 160 150 1500 300 75
RVSW2400NWDM3 24000 160 150 1500 300 75
RVSW2400NWM3 24000 160 150 1500 300 75
RVSW3000NW 30000 205 146 1500 300 75
RVSW3000NWA3 30000 205 146 1500 300 75
RVSW3000NWD 30000 205 146 1500 300 75
RVSW3000NWD3 30000 205 146 1500 300 75
RVSW3000NWDA3 30000 205 146 1500 300 75
RVSW3000NWDD3 30000 205 146 1500 300 75
RVSW3000NWDM3 30000 205 146 1500 300 75
RVSW3000NWM3 30000 205 146 1500 300 75
RVSW900NW 9000 60 150 600 300 75
RVSW900NWA3 9000 60 150 600 300 75
RVSW900NWD 9000 60 150 600 300 75
RVSW900NWD3 9000 60 150 600 300 75
RVSW900NWDA3 9000 60 150 600 300 75
RVSW900NWDD3 9000 60 150 600 300 75
RVSW900NWDM3 9000 60 150 600 300 75
RVSW900NWM3 9000 60 150 600 300 75
