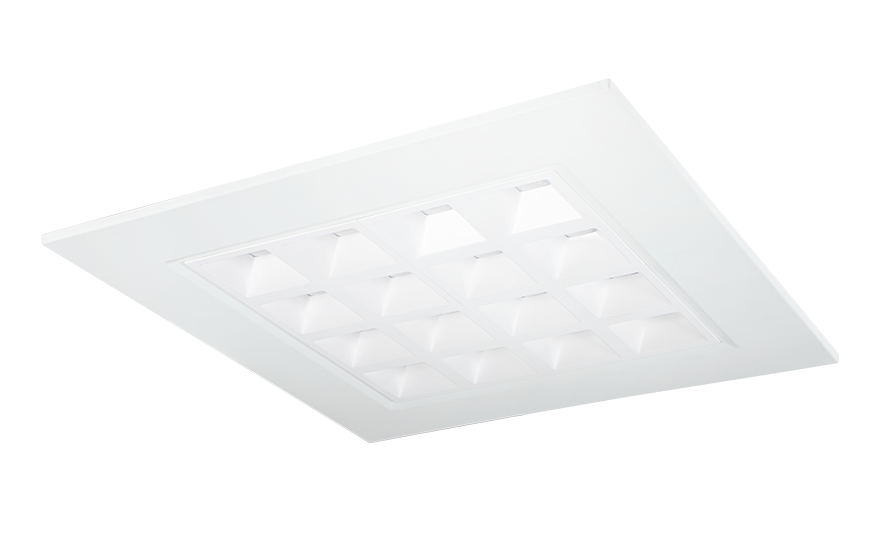

LOGIK

Recessed module for low glare and office areas

  • I-Tech multi-cell optic provides excellent glare control with BS EN-12464 compliance
  • Outstanding uniformity with up to 3m spacings
  • Steel frame, finished in white (RAL 9016)
  • Recessed lay-in for exposed T-Bar ceiling grid. Brackets available for plasterboard mount. Frame available for metal pan ceilings
  • TP(a) rated optic
  • Semi-opal high performance polycarbonate optic
  • Recessed multi-cell module to EN 12464 as per Tamlite LOGIK range
  • Supplied as standard with neutral white (4000K) LED
  • CRI: Ra>80
  • Gear options including DALI and emergency available
  • Suitable for office installations and general or task area lighting
  • Up to 130 lumens per Watt efficacy
IP20IK04Electrical class 2
≤4K lm
≤31 W
≤130 lm/W
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Instruction leaflet
Polar Curve
Photometric Data
Product Leaflet
Order Code Description lm W lm/W Cut out L(mm) W(mm) D(mm)
LGK66200NW 16W - 4000K 2000 16 125 595 595 595 42
LGK66200NWA3 16W - 4000K 2000 16 125 595 595 595 42
LGK66200NWD 16W - 4000K 2000 16 125 595 595 595 42
LGK66200NWD3 16W - 4000K 2000 16 125 595 595 595 42
LGK66200NWDA3 16W - 4000K 2000 16 125 595 595 595 42
LGK66200NWDD3 16W - 4000K 2000 16 125 595 595 595 42
LGK66200NWDM3 16W - 4000K 2000 16 125 595 595 595 42
LGK66200NWM3 16W - 4000K 2000 16 125 595 595 595 42
LGK66300NW 23W - 4000K 3000 23 130 595 595 595 42
LGK66300NWA3 23W - 4000K 3000 23 130 595 595 595 42
LGK66300NWD 23W - 4000K 3000 23 130 595 595 595 42
LGK66300NWD3 23W - 4000K 3000 23 130 595 595 595 42
LGK66300NWDA3 23W - 4000K 3000 23 130 595 595 595 42
LGK66300NWDD3 23W - 4000K 3000 23 130 595 595 595 42
LGK66300NWDM3 23W - 4000K 3000 23 130 595 595 595 42
LGK66300NWM3 23W - 4000K 3000 23 130 595 595 595 42
LGK66400NW 31W - 4000K 4000 31 129 595 595 595 42
LGK66400NWA3 31W - 4000K 4000 31 129 595 595 595 42
LGK66400NWD 31W - 4000K 4000 31 129 595 595 595 42
LGK66400NWD3 31W - 4000K 4000 31 129 595 595 595 42
LGK66400NWDA3 31W - 4000K 4000 31 129 595 595 595 42
LGK66400NWDD3 31W - 4000K 4000 31 129 595 595 595 42
LGK66400NWDM3 31W - 4000K 4000 31 129 595 595 595 42
LGK66400NWM3 31W - 4000K 4000 31 129 595 595 595 42
