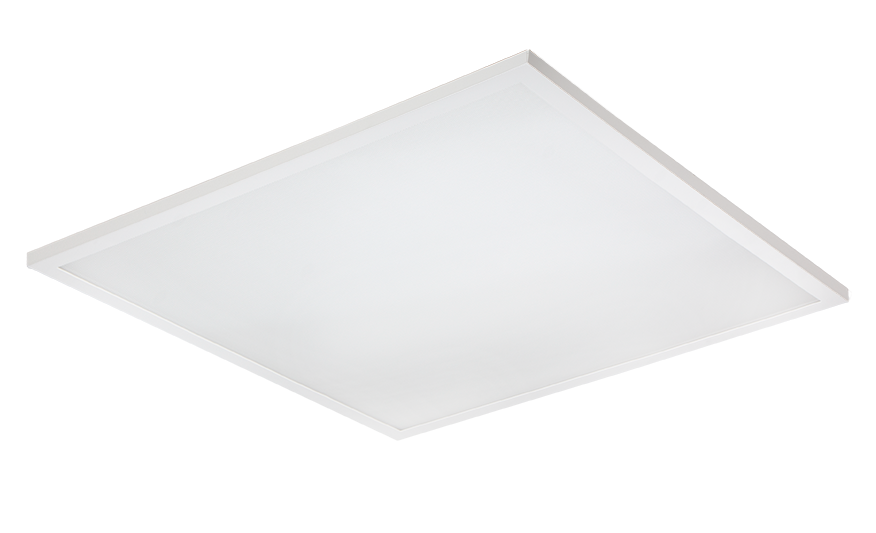

MODLED® LG
High performance backlit module with VDT optic
Information downloads
| Order code | Description | lm | W | lm/W | kg | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|---|---|---|
| PBL66200NW | 15W - 4000K | 2000 | 15 | 133 | 2.17 | 595 | 595 | 35 |
| PBL66300NW | 23W - 4000K | 3000 | 23 | 130 | 2.17 | 595 | 595 | 35 |
| PBL664000NW | 32W - 4000K | 4000 | 32 | 125 | 2.17 | 595 | 595 | 35 |
| PBL123300NW | 23W - 4000K | 3000 | 23 | 130 | 2.30 | 1195 | 295 | 35 |
| PBL123200NW | 15W - 4000K | 2000 | 15 | 133 | 2.30 | 1195 | 295 | 35 |
| PBL123400NW | 32W - 4000K | 4000 | 32 | 125 | 2.30 | 1195 | 295 | 35 |
| PBL126600NW | 45W - 4000K | 6000 | 45 | 133 | 4.20 | 1195 | 595 | 35 |
| PBL126400NW | 32W - 4000K | 4000 | 32 | 125 | 4.20 | 1195 | 595 | 35 |
| PBL126800NW | 69W - 4000K | 8000 | 69 | 116 | 4.20 | 1195 | 595 | 35 |
Product accessories
MODLED SB
CAPITAL S
CAPITAL P
CAPITAL B
CAPITAL
MODLED
LOGIK
ELAN R
ADVANCE
TYPHOON
CONTACT US
Product features
- Tamlite I-Tech diffuser designed for low glare reduction to BS EN-12464 compliance
- Suitable for office installations and general or task area lighting
- Backlit LED array for improved uniformity
- Suitable for use in VDU areas such as offices, schools and universities. High output version also ideal for Retail and Commercial areas
- Gear options including DALI and emergency available
- Available with warm white (3000K), neutral white (4000K) or cool white (5000K) on 600mmx600mm versions
- CRI: Ra>80
- Up to 133 lumens per Watt efficacy
- 50,000 hours lifetime (L70/B50)
Construction
- Extruded aluminium body finished in white (RAL 9010)
- TP (a) rated diffuser
- Backlit LED array
- Remote driver
To specify
High performance backlit module with VDT optic as per Tamlite MODLED LG range
Installation notes
Recessed into exposed T-Bar ceiling with connection to remote driver.
Gear options
D - Dimmable DALI
M3 - 3 hours integrated emergency
A3 - Emergency self test
D3 - DALI self test
WW - Warm white (3000K)
CW - Cool white (5000K)
