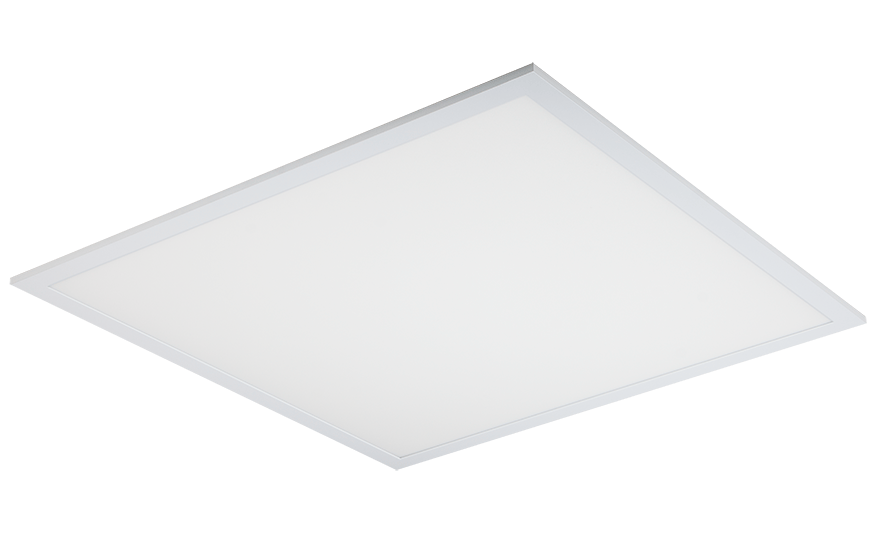

MODLED®
Low energy recessed modular panel
Information downloads
| Order code | Description | lm | W | lm/W | kg | A (mm) | B (mm) | C (mm) | Cut out ±1 |
|---|---|---|---|---|---|---|---|---|---|
| MBL66220NW | 16W - 4000K | 2200 | 16 | 138 | 1.84 | 595 | 595 | 35 | 595 |
| MBL66330NW | 27W - 4000K | 3300 | 27 | 122 | 1.84 | 595 | 595 | 35 | 595 |
| MBL66440NW | 35W - 4000K | 4400 | 35 | 126 | 1.84 | 595 | 595 | 35 | 595 |
| MBL123220NW | 16W - 4000K | 2200 | 16 | 138 | 1.97 | 1195 | 295 | 35 | 595 |
| MBL123330NW | 27W - 4000K | 3300 | 27 | 122 | 1.97 | 1195 | 295 | 35 | 595 |
| MBL123440NW | 35W - 4000K | 4400 | 35 | 126 | 1.97 | 1195 | 295 | 35 | 595 |
| MBL126600NW | 54W - 4000K | 6000 | 54 | 111 | 3.85 | 1195 | 595 | 35 | 595 |
Product accessories
MODLED SB
CAPITAL S
CAPITAL P
CAPITAL B
CAPITAL
MODLED LG
LOGIK
ADVANCE
TYPHOON
HORIZON COMFORT
CONTACT US
Product features
- Suitable for use in offices, schools and universities and general circulation
- More consistent and uniform appearance than traditional edge-lit panels
- Modular dimensions allow easy install in most exposed T-bar ceilings
- Available with warm white (3000K), neutral white (4000K) or cool white (5000K) on 600mmx600mm versions
- DALI dimmable available
- CRI: Ra>80
- Up to 138 lumens per Watt efficacy
- 50,000 hours lifetime (L70/B50)
Construction
- Extruded aluminium body finished in white (RAL 9010)
- Opal PMMA diffuser
- Backlit LED array
- Remote driver
To specify
Low energy recessed modular panel as per Tamlite MODLED range
Installation notes
Recessed into exposed T-Bar ceiling with connection to remote driver.
Gear options
D - Dimmable DALI
M3 - 3 hours integrated emergency
A3 - Emergency self test
D3 - DALI self test
WW - Warm white (3000K)
CW - Cool white (5000K)
