Order Code: FRN400T4WWGD

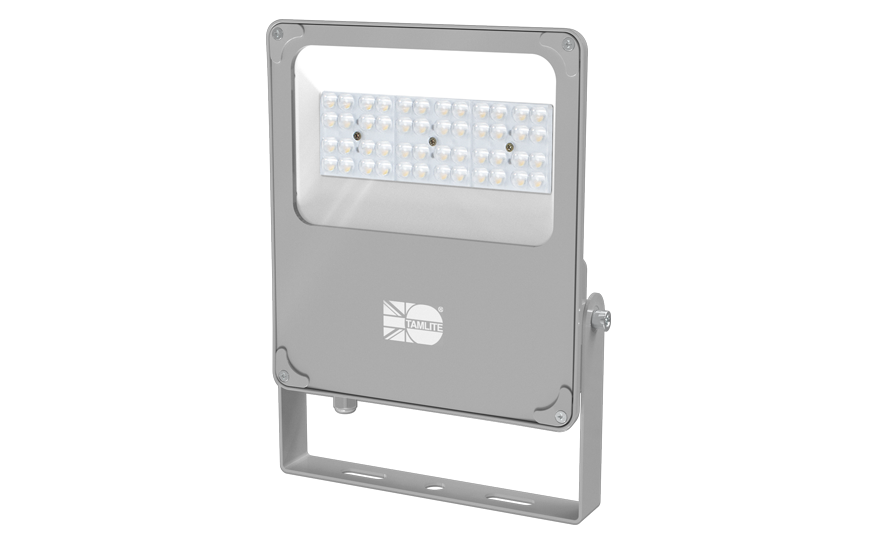

FRONTIER Floodlight Grey 30W - T4 Area Optic - Dimmable DALI - 3000K

IP66IK08Electrical class 17 Years Warranty2 Years On-Site Warranty (T&C`s Apply)
4K lm
30 W
133 lm/W
Technical Data
General

Luminaire Wattage (W) 30

Weight (kg) 1.95

Operating Temperature (°C) -20° to 25°

Light Output

Lumens (lm) 4000

Efficacy (lm/W) 133

Beam Angle (FWHM°) 150

Life

L90 Lifetime (HRS) 60000

L80 Lifetime (HRS) 84000

L70 Lifetime (HRS) 84000

Electrical

Rated Input Current (A) 0.14

Power Factor (pf) 0.96

Input Voltage Range (VAC) 90-305

Inrush Current Peak (A) 368

Surge Protection (kV) 6

Total Harmonic Distortion (THD) 10

Output LF Ripple 5

Conductor Size (mm) 1

LED

CCT (K) 3000

CRI 80

Macadam Elipses 3

Driver

Driver Current (mA) 760

Forward Voltage (V) 34.8

Features
  • High performance floodlight suitable for car parking and sports applications
  • Lightweight design enables install on light duty columns
  • Die-cast aluminium body finished in marine grade paint - grey (RAL 9006)
Construction
  • Integral driver
  • Supplied in neutral white (4000K) LED
To Specify

FRONTIER Floodlight Grey 30W - T4 Area Optic - Dimmable DALI - 3000K as per Tamlite FRONTIER range.
