Home > Products > ZENITH

ZENITH

Linear high output IP65 weatherproof for industrial areas

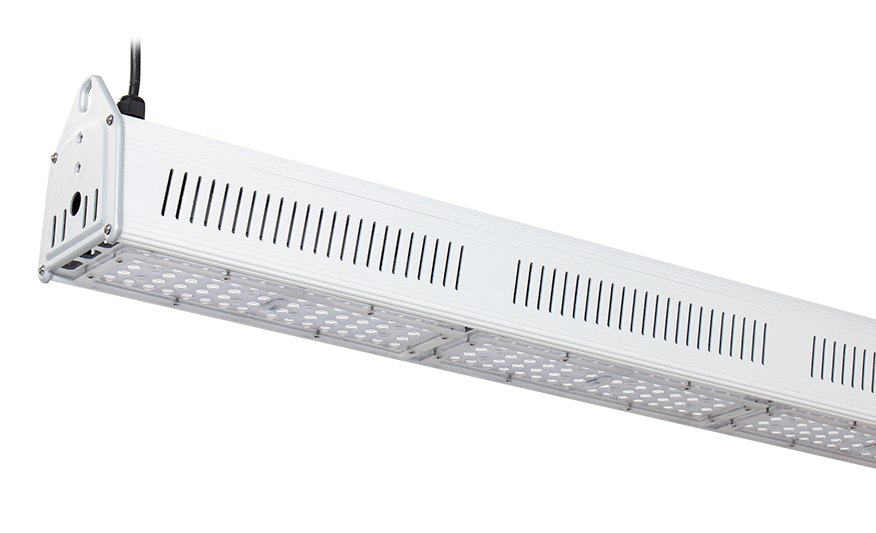

  • ZENITH ZENITH product photograph
  • ZENITH ZENITH product photograph
  • ZENITH ZENITH product photograph
  • ZENITH ZENITH product photograph
  • ZENITH ZENITH product photograph
  • ZENITH ZENITH line drawing
Information downloads

Data sheet

Photometric data

Photometric image

Installation sheet

Product leaflet
Order code Description lm W lm/W kgA (mm)B (mm)C (mm)
ZNT4W1530NW100W - 4000K - High/Low bay - Wide beam153001001535.241095108125
ZNT4W2040NW150W - 4000K - High/Low bay - Wide beam204001501365.241095108125
ZNT4W2690NW200W - 4000K - High/Low bay - Wide beam269002001355.401095108125
Related products

CONTACT US
Product features
  • Suitable for industrial and warehousing areas up to 20m mounting height
  • Tamlite I-Tech optic designed for high optical control
  • Available in 3 outputs
  • IP20 Emergency option also available
  • CRI: Ra>80
  • Up to 153 lumens per Watt efficacy
  • 50,000 hours lifetime
Construction
  • Extruded aluminium body
  • Clear polycarbonate lens
  • Integral driver
  • Supplied as standard with neutral white (4000K) LED
To specify

Linear high output weatherproof as per Tamlite ZENITH range

Installation notes

Fixed via end cap suspension holes supplied with 1.5m flex

Emergency options

M3 - 3 hours integrated emergency
