TYPHOON

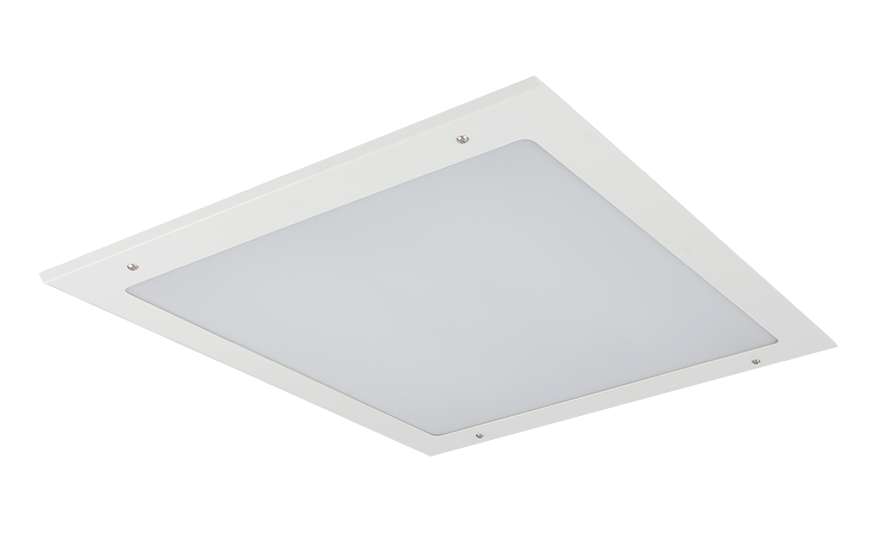

Recessed sealed LED module
Information downloads
| Order code | Description | lm | W | lm/W | kg | A (mm) | B (mm) | c (mm) |
|---|---|---|---|---|---|---|---|---|
| TSM66300NW | 30W - 4000K | 3000 | 30 | 100 | 5.50 | 595 | 595 | 70 |
| TSM66400NW | 40W - 4000K | 4000 | 40 | 100 | 5.50 | 595 | 595 | 70 |
| TSM66500NW | 53W - 4000K | 5000 | 53 | 95 | 5.50 | 595 | 595 | 70 |
| TSM126600NW | 60W - 4000K | 6000 | 60 | 100 | 10.00 | 1200 | 595 | 70 |
| TSM126800NW | 80W - 4000K | 8000 | 80 | 100 | 10.00 | 1200 | 595 | 70 |
| TSM1261000NW | 106W - 4000K | 10000 | 106 | 95 | 10.00 | 1200 | 595 | 70 |
MODLED TP
HORIZON COMFORT
HORIZON FOCUS
AXIS
MODLED LG PRO
BLUEWATER
TX
HORIZON
MODLED
Product features
Construction
TYPHOON T5
To specify
Installation notes
Gear options
- Recessed sealed module for areas where a high degree of protection is required
- Rated IP54 from underside of ceiling
- IK10 impact resistance
- Ideal for commercial kitchens, changing rooms and other areas where splash protection is required
- Full range of gear options including dimmable, DALI and emergency available
- CRI: Ra>80
- Up to 100 lumens per Watt efficacy
- 50,000 hours lifetime (L70/B50)
Construction
- Steel body finished in white (RAL 9016)
- Polycarbonate TP(a) high efficiency Opal diffuser
TYPHOON T5
View the non LED version of this product.
To specify
Recessed sealed IP54 module as per Tamlite TYPHOON range
Installation notes
Recessed lay-in for exposed 25mm ceiling grid. Suitable for plasterboard mount. Other sizes available for metal pan ceilings
Gear options
HFS - Microwave movement sensor
HFD - Digital dimmable version
HFSD - Dimmable microwave movement sensor
DALI - DALI dimming control gear
M3 - 3 hours integrated emergency
AST - Emergency self test
NL - Night-light
