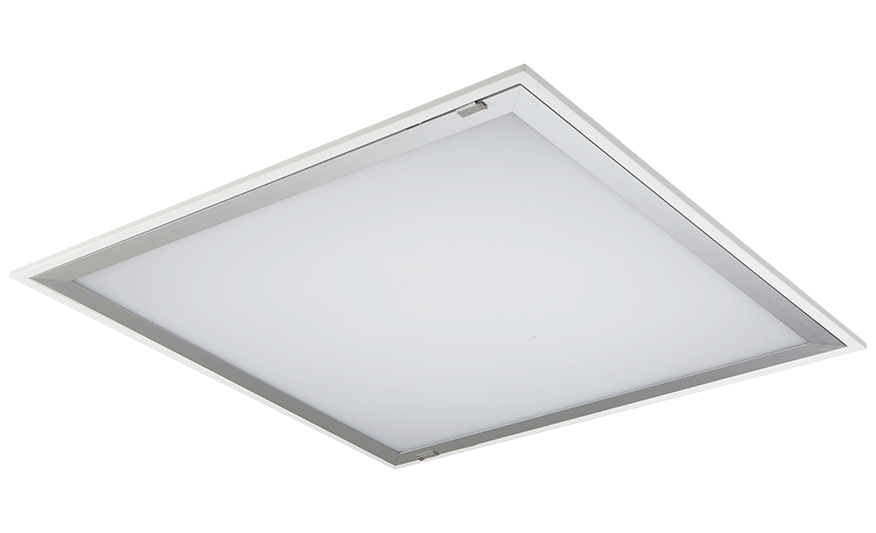

TX

Recessed IP65 Sealed Module

  • TM66 Certified options available for specification
  • Gear options including DALI and emergency available
  • Sealed to IP65 rating for medical and cleanrooms
  • CRI: Ra>80
  • Steel body finished in white (RAL 9016)
  • Extruded aluminium frame with silicone gasket
  • Opal Polycarbonate TP(a) diffuser
  • Wide range of diffusers
  • Self-tightening fixing clips
  • Supplied in neutral white (4000K) LED
  • Up to 111 lumens per Watt efficacy
IP65IK08Electrical class 17 Years Warranty
≤7.8K lm
≤70 W
≤111 lm/W
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order CodeDescriptionlmWlm/WCut outL(mm)W(mm)D(mm)Add to Project
TXR123390ONW35W - Opal Diffuser - 4000K3900351111202 x 302119729776
TXR123390ONWA335W - Opal Diffuser - 4000K3900351111202 x 302119729776
TXR123390ONWD35W - Opal Diffuser - 4000K3900351111202 x 302119729776
TXR123390ONWD335W - Opal Diffuser - 4000K3900351111202 x 302119729776
TXR123390ONWDA335W - Opal Diffuser - 4000K3900351111202 x 302119729776
TXR123390ONWDD335W - Opal Diffuser - 4000K3900351111202 x 302119729776
TXR123390ONWDM335W - Opal Diffuser - 4000K3900351111202 x 302119729776
TXR123390ONWM335W - Opal Diffuser - 4000K3900351111202 x 302119729776
TXR66390ONW35W - Opal Diffuser - 4000K390035111602 x 60259759776
TXR66390ONWA335W - Opal Diffuser - 4000K390035111602 x 60259759776
TXR66390ONWD35W - Opal Diffuser - 4000K390035111602 x 60259759776
TXR66390ONWD335W - Opal Diffuser - 4000K390035111602 x 60259759776
TXR66390ONWDA335W - Opal Diffuser - 4000K390035111602 x 60259759776
TXR66390ONWDD335W - Opal Diffuser - 4000K390035111602 x 60259759776
TXR66390ONWDM335W - Opal Diffuser - 4000K390035111602 x 60259759776
TXR66390ONWM335W - Opal Diffuser - 4000K390035111602 x 60259759776
TXR126780ONW70W - Opal Diffuser - 4000K7800701111202 x 602119759776
TXR126780ONWA370W - Opal Diffuser - 4000K7800701111202 x 602119759776
TXR126780ONWD70W - Opal Diffuser - 4000K7800701111202 x 602119759776
TXR126780ONWD370W - Opal Diffuser - 4000K7800701111202 x 602119759776
TXR126780ONWDA370W - Opal Diffuser - 4000K7800701111202 x 602119759776
TXR126780ONWDD370W - Opal Diffuser - 4000K7800701111202 x 602119759776
TXR126780ONWDM370W - Opal Diffuser - 4000K7800701111202 x 602119759776
TXR126780ONWM370W - Opal Diffuser - 4000K7800701111202 x 602119759776
