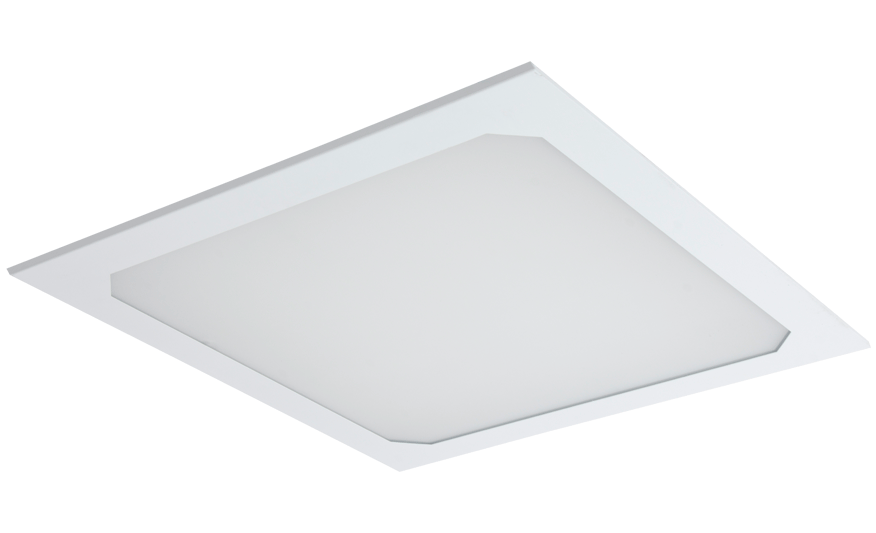

TROJAN

Recessed canopy

  • Suitable for retro-fit into canopy areas and forecourts
  • Gear options including DALI and emergency available
  • IP65 weatherproof fixture for exterior applications
  • CRI: Ra>80
  • Steel body finished in white (RAL 9010)
  • Opal Polycarbonate TP(a) diffuser
  • Recessed canopy with opal diffuser
  • Integral driver
  • Rear access fix only via internal fixing bracket and wired to a Wieland plug and socket
  • Rear-entry access only
  • Supplied as standard with neutral white (4000K) LED
  • Up to 100 lumens per Watt efficacy
IP65IK08Electrical class 15 Year Warranty
≤13.5K lm
≤135 W
≤100 lm/W
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W L(mm) W(mm) D(mm)
TRJ1350NW 135W - 4000K 13500 135 100 595 595 122
TRJ1350NWA3 135W - 4000K 13500 135 100 595 595 122
TRJ1350NWD 135W - 4000K 13500 135 100 595 595 122
TRJ1350NWD3 135W - 4000K 13500 135 100 595 595 122
TRJ1350NWDA3 135W - 4000K 13500 135 100 595 595 122
TRJ1350NWDD3 135W - 4000K 13500 135 100 595 595 122
TRJ1350NWDM3 135W - 4000K 13500 135 100 595 595 122
TRJ1350NWM3 135W - 4000K 13500 135 100 595 595 122
