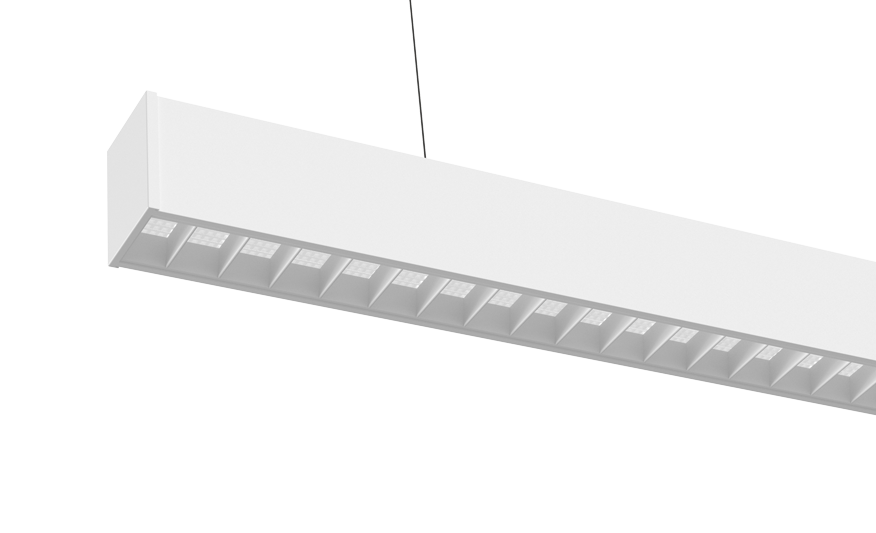

SIGNUM CELL

Suspended Linear Module with Multi-cell Optic

Available in 2 module lengths and 2 colour options
Tamlite I-Tech multi-cell optic provides excellent glare control
Suspended direct/indirect modular with multi-cell optic
Downward and upward light output (60/40)
Integrated emergency option available
Die-cast aluminium body finished in white (RAL 9016) or black (RAL 9005)
Aluminium multi-cell optic
Cable entry via rear cable access and wired to internal terminal block
CRI: Ra>80
Supplied in neutral white (4000K) LED

≤6K lm

≤58 W

≤103 lm/W

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Colour Temperature (CCTK)

Emergency

DALI

Instruction leaflet

Polar Curve

Photometric Data

Order Code	Description	lm	W	lm/W	L(mm)	W(mm)	D(mm)
SGN4400PONWB	40W - 4000K - Black	4000	40	100	1092	57	75
SGN4400PONWBA3	40W - 4000K - Black	4000	40	100	1092	57	75
SGN4400PONWBD	40W - 4000K - Black	4000	40	100	1092	57	75
SGN4400PONWBD3	40W - 4000K - Black	4000	40	100	1092	57	75
SGN4400PONWBDA3	40W - 4000K - Black	4000	40	100	1092	57	75
SGN4400PONWBDD3	40W - 4000K - Black	4000	40	100	1092	57	75
SGN4400PONWBDM3	40W - 4000K - Black	4000	40	100	1092	57	75
SGN4400PONWBM3	40W - 4000K - Black	4000	40	100	1092	57	75
SGN4400PONWW	40W - 4000K - White	4000	40	100	1092	57	75
SGN4400PONWWA3	40W - 4000K - White	4000	40	100	1092	57	75
SGN4400PONWWD	40W - 4000K - White	4000	40	100	1092	57	75
SGN4400PONWWD3	40W - 4000K - White	4000	40	100	1092	57	75
SGN4400PONWWDA3	40W - 4000K - White	4000	40	100	1092	57	75
SGN4400PONWWDD3	40W - 4000K - White	4000	40	100	1092	57	75
SGN4400PONWWDM3	40W - 4000K - White	4000	40	100	1092	57	75
SGN4400PONWWM3	40W - 4000K - White	4000	40	100	1092	57	75
SGN5600PONWB	58W - 4000K - Black	6000	58	103	1631	57	75
SGN5600PONWBA3	58W - 4000K - Black	6000	58	103	1631	57	75
SGN5600PONWBD	58W - 4000K - Black	6000	58	103	1631	57	75
SGN5600PONWBD3	58W - 4000K - Black	6000	58	103	1631	57	75
SGN5600PONWBDA3	58W - 4000K - Black	6000	58	103	1631	57	75
SGN5600PONWBDD3	58W - 4000K - Black	6000	58	103	1631	57	75
SGN5600PONWBDM3	58W - 4000K - Black	6000	58	103	1631	57	75
SGN5600PONWBM3	58W - 4000K - Black	6000	58	103	1631	57	75
SGN5600PONWW	58W - 4000K - White	6000	58	103	1631	57	75
SGN5600PONWWA3	58W - 4000K - White	6000	58	103	1631	57	75
SGN5600PONWWD	58W - 4000K - White	6000	58	103	1631	57	75
SGN5600PONWWD3	58W - 4000K - White	6000	58	103	1631	57	75
SGN5600PONWWDA3	58W - 4000K - White	6000	58	103	1631	57	75
SGN5600PONWWDD3	58W - 4000K - White	6000	58	103	1631	57	75
SGN5600PONWWDM3	58W - 4000K - White	6000	58	103	1631	57	75
SGN5600PONWWM3	58W - 4000K - White	6000	58	103	1631	57	75
