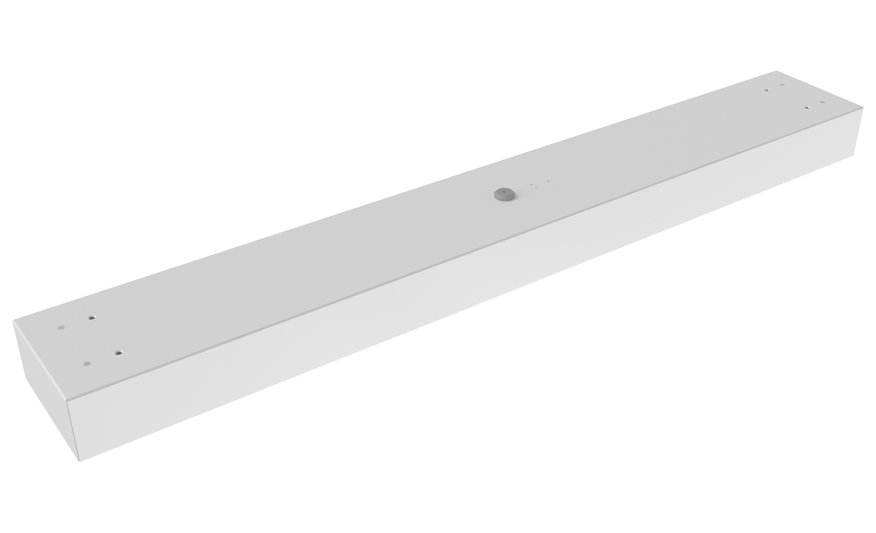

SECURE S

Anti-ligature Surface Module

1.2mm Steel body finished in white (RAL 9010)
4mm Opal polycarbonate diffuser secured by Resistorx screws
Secure fitting built to prevent vulnerable people from accidently or intentionally self-harming
Suitable for low, medium and high risk secure services
Available in 2 lengths
Wall or ceiling mount
Conduit fix via rear cable entry
For use in hospital wards and corridors
Vandal-resistant and tamper-proof
Gear options including DALI and emergency available
CRI: Ra>80
Integral driver
Supplied in neutral white (4000K) LED

≤5K lm

≤49 W

≤108 lm/W

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Colour Temperature (CCTK)

Vision Controls

Emergency

DALI

Instruction leaflet

Polar Curve

Photometric Data

Order Code	Description	lm	W	lm/W	L(mm)	W(mm)	D(mm)
SCS4300NW	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWA3	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWA3MS	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWD	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWD3	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWD3MS	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWDA3	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWDA3MS	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWDD3	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWDD3MS	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWDM3	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWDM3MS	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWDMS	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWM3	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWM3MS	29W - 4000K	3000	29	103	1250	175	85
SCS4300NWMS	29W - 4000K	3000	29	103	1250	175	85
SCS5330NW	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWA3	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWA3MS	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWD	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWD3	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWD3MS	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWDA3	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWDA3MS	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWDD3	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWDD3MS	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWDM3	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWDM3MS	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWDMS	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWM3	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWM3MS	31W - 4000K	3300	31	106	1525	175	85
SCS5330NWMS	31W - 4000K	3300	31	106	1525	175	85
SCS4400NW	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWA3	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWA3MS	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWD	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWD3	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWD3MS	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWDA3	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWDA3MS	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWDD3	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWDD3MS	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWDM3	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWDM3MS	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWDMS	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWM3	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWM3MS	39W - 4000K	4000	39	103	1250	175	85
SCS4400NWMS	39W - 4000K	4000	39	103	1250	175	85
SCS5400NW	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWA3	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWA3MS	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWD	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWD3	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWD3MS	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWDA3	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWDA3MS	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWDD3	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWDD3MS	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWDM3	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWDM3MS	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWDMS	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWM3	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWM3MS	37W - 4000K	4000	37	108	1525	175	85
SCS5400NWMS	37W - 4000K	4000	37	108	1525	175	85
SCS5500NW	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWA3	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWA3MS	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWD	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWD3	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWD3MS	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWDA3	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWDA3MS	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWDD3	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWDD3MS	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWDM3	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWDM3MS	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWDMS	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWM3	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWM3MS	49W - 4000K	5000	49	102	1525	175	85
SCS5500NWMS	49W - 4000K	5000	49	102	1525	175	85
