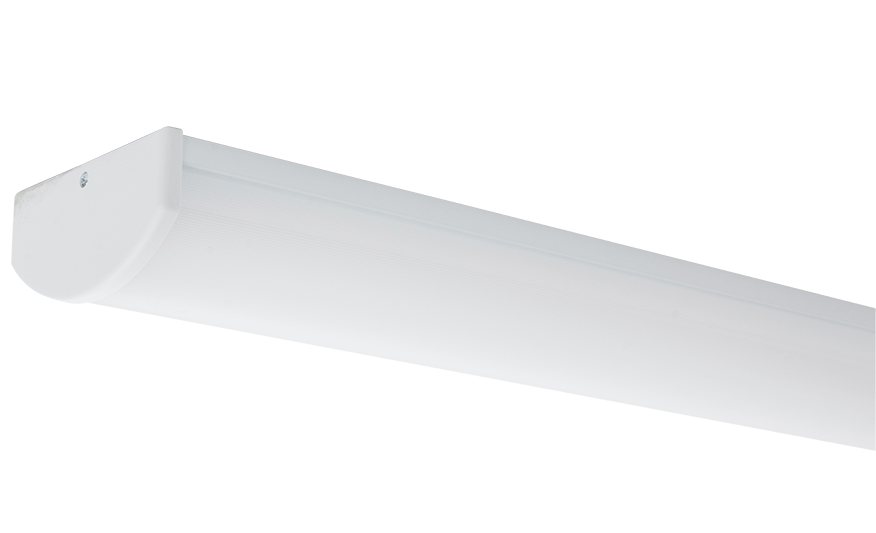

PRIMA

Surface LED Module

  • Suitable for offices and schools
  • Gear options including DALI and emergency available
  • CRI: Ra>80
  • Steel body finished in white (RAL 9016)
  • Opal diffuser for wide beam distribution
  • Polycarbonate extruded diffuser with end caps and screw fixings
  • Secured end caps
  • Supplied in neutral white (4000K) LED
  • Up to 161 lumens per watt efficacy
7 Years Warranty2 Years On-Site Warranty (T&C`s Apply)Vision OneVision ConnectVision Connect ProVision AirVision Air Pro
Tamlite TM66 Logo
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

TM66 Certificate
Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W L(mm) W(mm) D(mm) Folio
TMPO4270NW 17W - 4000K 2700 17 159 1215 185 90
TMPO4270NWA3 17W - 4000K 2700 17 159 1215 185 90
TMPO4270NWD 17W - 4000K 2700 17 159 1215 185 90
TMPO4270NWD3 17W - 4000K 2700 17 159 1215 185 90
TMPO4270NWDA3 17W - 4000K 2700 17 159 1215 185 90
TMPO4270NWDD3 17W - 4000K 2700 17 159 1215 185 90
TMPO4270NWDM3 17W - 4000K 2700 17 159 1215 185 90
TMPO4270NWM3 17W - 4000K 2700 17 159 1215 185 90
TMPO4270WW 17W - 3000K 2700 17 159 1215 185 90
TMPO4270WWA3 17W - 3000K 2700 17 159 1215 185 90
TMPO4270WWD 17W - 3000K 2700 17 159 1215 185 90
TMPO4270WWD3 17W - 3000K 2700 17 159 1215 185 90
TMPO4270WWDA3 17W - 3000K 2700 17 159 1215 185 90
TMPO4270WWDD3 17W - 3000K 2700 17 159 1215 185 90
TMPO4270WWDM3 17W - 3000K 2700 17 159 1215 185 90
TMPO4270WWM3 17W - 3000K 2700 17 159 1215 185 90
TMPO4430NW 28W - 4000K 4300 28 154 1215 185 90
TMPO4430NWA3 28W - 4000K 4300 28 154 1215 185 90
TMPO4430NWD 28W - 4000K 4300 28 154 1215 185 90
TMPO4430NWD3 28W - 4000K 4300 28 154 1215 185 90
TMPO4430NWDA3 28W - 4000K 4300 28 154 1215 185 90
TMPO4430NWDD3 28W - 4000K 4300 28 154 1215 185 90
TMPO4430NWDM3 28W - 4000K 4300 28 154 1215 185 90
TMPO4430NWM3 28W - 4000K 4300 28 154 1215 185 90
TMPO4430WW 28W - 3000K 4300 28 154 1215 185 90
TMPO4430WWA3 28W - 3000K 4300 28 154 1215 185 90
TMPO4430WWD 28W - 3000K 4300 28 154 1215 185 90
TMPO4430WWD3 28W - 3000K 4300 28 154 1215 185 90
TMPO4430WWDA3 28W - 3000K 4300 28 154 1215 185 90
TMPO4430WWDD3 28W - 3000K 4300 28 154 1215 185 90
TMPO4430WWDM3 28W - 3000K 4300 28 154 1215 185 90
TMPO4430WWM3 28W - 3000K 4300 28 154 1215 185 90
TMPO5530NW 33W - 4000K 5300 33 161 1515 185 90
TMPO5530NWA3 33W - 4000K 5300 33 161 1515 185 90
TMPO5530NWD 33W - 4000K 5300 33 161 1515 185 90
TMPO5530NWD3 33W - 4000K 5300 33 161 1515 185 90
TMPO5530NWDA3 33W - 4000K 5300 33 161 1515 185 90
TMPO5530NWDD3 33W - 4000K 5300 33 161 1515 185 90
TMPO5530NWDM3 33W - 4000K 5300 33 161 1515 185 90
TMPO5530NWM3 33W - 4000K 5300 33 161 1515 185 90
TMPO5530WW 33W - 3000K 5300 33 161 1515 185 90
TMPO5530WWA3 33W - 3000K 5300 33 161 1515 185 90
TMPO5530WWD 33W - 3000K 5300 33 161 1515 185 90
TMPO5530WWD3 33W - 3000K 5300 33 161 1515 185 90
TMPO5530WWDA3 33W - 3000K 5300 33 161 1515 185 90
TMPO5530WWDD3 33W - 3000K 5300 33 161 1515 185 90
TMPO5530WWDM3 33W - 3000K 5300 33 161 1515 185 90
TMPO5530WWM3 33W - 3000K 5300 33 161 1515 185 90
TMPO5730NW 46W - 4000K 7300 46 159 1515 185 90
TMPO5730NWA3 46W - 4000K 7300 46 159 1515 185 90
TMPO5730NWD 46W - 4000K 7300 46 159 1515 185 90
TMPO5730NWD3 46W - 4000K 7300 46 159 1515 185 90
TMPO5730NWDA3 46W - 4000K 7300 46 159 1515 185 90
TMPO5730NWDD3 46W - 4000K 7300 46 159 1515 185 90
TMPO5730NWDM3 46W - 4000K 7300 46 159 1515 185 90
TMPO5730NWM3 46W - 4000K 7300 46 159 1515 185 90
TMPO5730WW 46W - 3000K 7300 46 159 1515 185 90
TMPO5730WWA3 46W - 3000K 7300 46 159 1515 185 90
TMPO5730WWD 46W - 3000K 7300 46 159 1515 185 90
TMPO5730WWD3 46W - 3000K 7300 46 159 1515 185 90
TMPO5730WWDA3 46W - 3000K 7300 46 159 1515 185 90
TMPO5730WWDD3 46W - 3000K 7300 46 159 1515 185 90
TMPO5730WWDM3 46W - 3000K 7300 46 159 1515 185 90
TMPO5730WWM3 46W - 3000K 7300 46 159 1515 185 90
TMPO5900NW 60W - 4000K 9000 60 150 1515 185 90
TMPO5900NWA3 60W - 4000K 9000 60 150 1515 185 90
TMPO5900NWD 60W - 4000K 9000 60 150 1515 185 90
TMPO5900NWD3 60W - 4000K 9000 60 150 1515 185 90
TMPO5900NWDA3 60W - 4000K 9000 60 150 1515 185 90
TMPO5900NWDD3 60W - 4000K 9000 60 150 1515 185 90
TMPO5900NWDM3 60W - 4000K 9000 60 150 1515 185 90
TMPO5900NWM3 60W - 4000K 9000 60 150 1515 185 90
TMPO5900WW 60W - 3000K 9000 60 150 1515 185 90
TMPO5900WWA3 60W - 3000K 9000 60 150 1515 185 90
TMPO5900WWD 60W - 3000K 9000 60 150 1515 185 90
TMPO5900WWD3 60W - 3000K 9000 60 150 1515 185 90
TMPO5900WWDA3 60W - 3000K 9000 60 150 1515 185 90
TMPO5900WWDD3 60W - 3000K 9000 60 150 1515 185 90
TMPO5900WWDM3 60W - 3000K 9000 60 150 1515 185 90
TMPO5900WWM3 60W - 3000K 9000 60 150 1515 185 90
