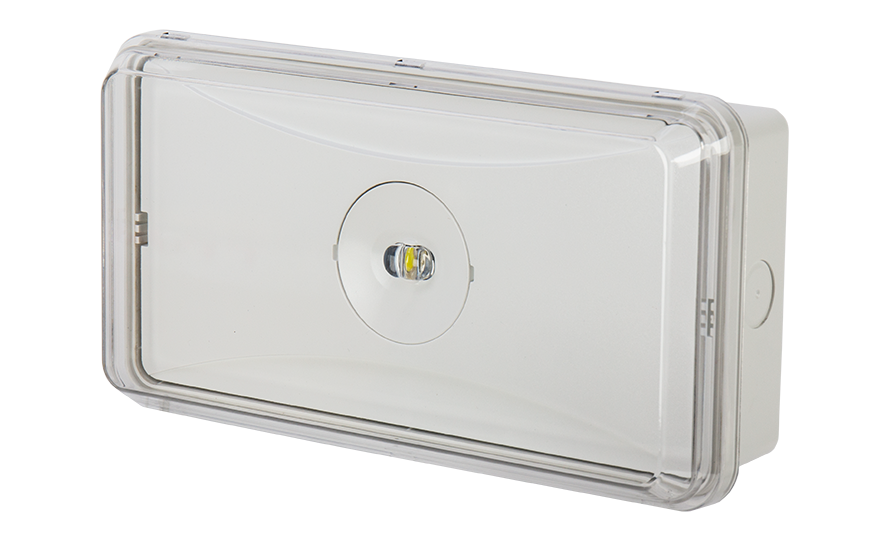

LEDMAX

High output emergency bulkhead

  • Available with narrow or wide beam optic
  • Easy to install with simple connection wiring
  • High output emergency bulkhead for large spaces up to 20m mounting height
  • Wall or ceiling fix via rear-mounted fixing and cable entry
  • Virtually service free emergency lighting
  • Polycarbonate body and diffuser
  • 20mm conduit side cable entries for ceiling fix (under body, above supplied)
  • Single BESA entry
  • Polycarbonate IP65 emergency bulkhead as per Tamlite LEDMAX range
  • Supplied as standard with daylight (6500K) LED
IP65IK06Electrical class 15 Year Warranty
≤350 lm
≤5 W
≤70 lm/W
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Order Code Description lm W lm/W Dia(mm) H(mm) L(mm) W(mm) D(mm)
LLH35NDLNM3 5W - 6000-6500K - Narrow beam 350 5 70 0 0 235 125 65
LLH35WDLNM3 5W - 6000-6500K - Wide beam 350 5 70 0 0 235 125 65
