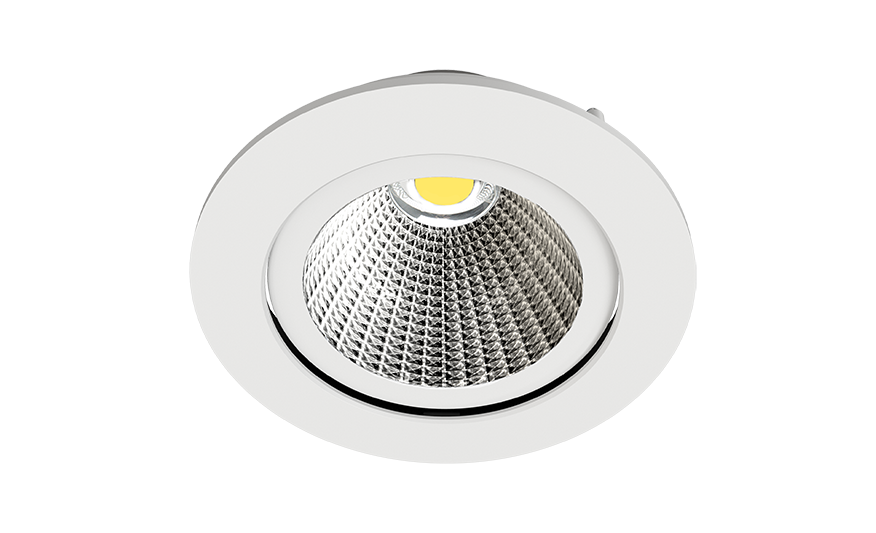

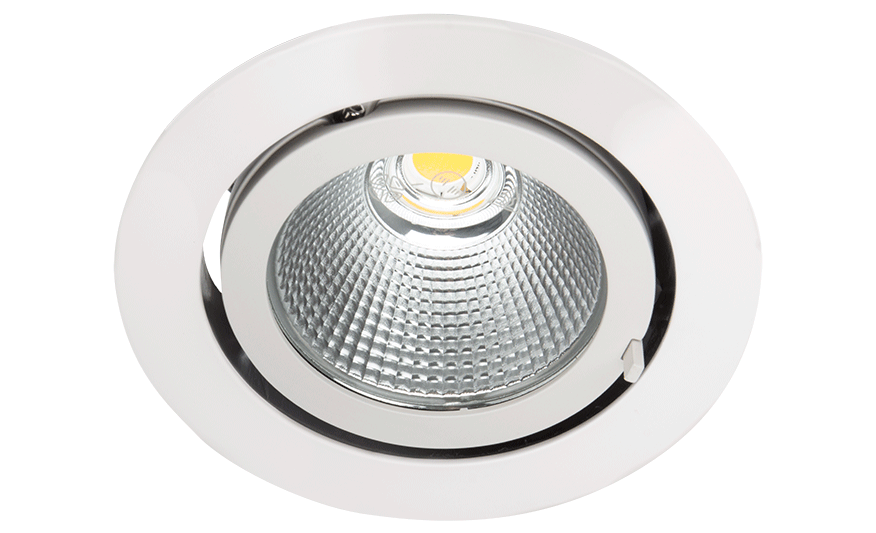

i3

Recessed adjustable downlight

  • Suitable for retail applications
  • Fully adjustable up to 350° rotation and 45° tilt
  • Polished aluminium reflector
  • Gear options including DALI and emergency available
  • Recessed into plasterboard or exposed grid ceiling via spring clips
  • CRI: Ra>80
  • Die-cast aluminium body finished in white (RAL 9010)
  • High efficiency LED module with remote driver
  • Remote driver
  • Supplied as standard with neutral white (4000K) LED
  • Up to 139 lumens per Watt efficacy
IP20IK04Electrical class 2Electrical class 15 Year Warranty
≤2.5K lm
≤18 W
≤139 lm/W
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W Cut out Dia(mm) D(mm)
TDM160NW 12W - 4000K 1600 12 133 140 150 130
TDM160NWA3 12W - 4000K 1600 12 133 140 150 130
TDM160NWD 12W - 4000K 1600 12 133 140 150 130
TDM160NWD3 12W - 4000K 1600 12 133 140 150 130
TDM160NWDA3 12W - 4000K 1600 12 133 140 150 130
TDM160NWDD3 12W - 4000K 2500 18 139 140 150 130
TDM160NWDM3 12W - 4000K 1600 12 133 140 150 130
TDM160NWM3 12W - 4000K 1600 12 133 140 150 130
TDM160WW 12W - 3000K 1600 12 133 140 150 130
TDM160WWA3 12W - 3000K 1600 12 133 140 150 130
TDM160WWD 12W - 3000K 1600 12 133 140 150 130
TDM160WWD3 12W - 3000K 1600 12 133 140 150 130
TDM160WWDA3 12W - 3000K 1600 12 133 140 150 130
TDM160WWDD3 12W - 3000K 1600 12 133 140 150 130
TDM160WWDM3 12W - 3000K 1600 12 133 140 150 130
TDM160WWM3 12W - 3000K 1600 12 133 140 150 130
TDM250NW 18W - 4000K 2500 18 139 140 150 130
TDM250NWA3 18W - 4000K 2500 18 139 140 150 130
TDM250NWD 18W - 4000K 2500 18 139 140 150 130
TDM250NWD3 18W - 4000K 2500 18 139 140 150 130
TDM250NWDA3 18W - 4000K 2500 18 139 140 150 130
TDM250NWDD3 18W - 4000K 2500 18 139 140 150 130
TDM250NWDM3 18W - 4000K 2500 18 139 140 150 130
TDM250NWM3 18W - 4000K 2500 18 139 140 150 130
TDM250WW 18W - 3000K 2500 18 139 140 150 130
TDM250WWA3 18W - 3000K 2500 18 139 140 150 130
TDM250WWD 18W - 3000K 2500 18 139 140 150 130
TDM250WWD3 18W - 3000K 2500 18 139 140 150 130
TDM250WWDA3 18W - 3000K 2500 18 139 140 150 130
TDM250WWDD3 18W - 3000K 2500 18 139 140 150 130
TDM250WWDM3 18W - 3000K 2500 18 139 140 150 130
TDM250WWM3 18W - 3000K 2500 18 139 140 150 130
