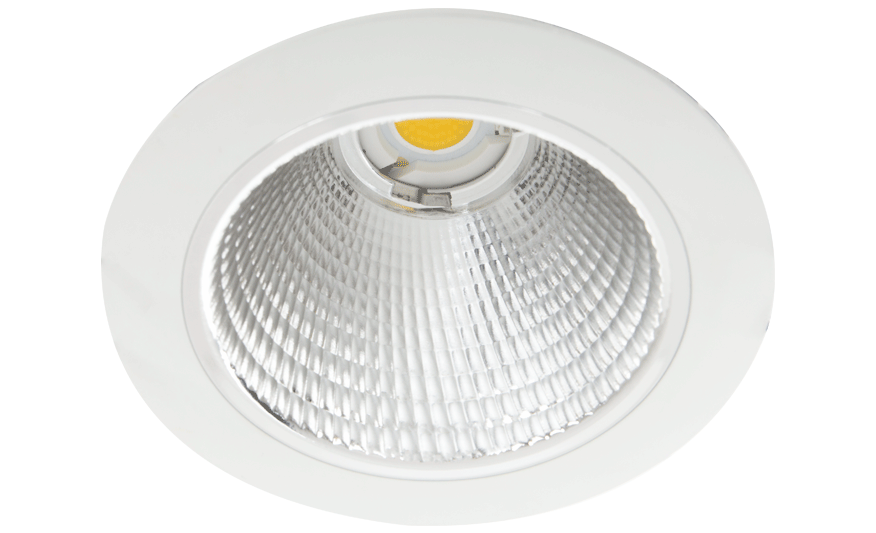

i1

Recessed compact professional downlight

  • Suitable for retail applications
  • Polished aluminium reflector
  • Compact fitting with high output
  • Recessed into plasterboard or exposed grid ceiling via spring clips
  • CRI: Ra>80
  • Pressed steel body finished in white (RAL 9010)
  • Remote driver
  • Supplied as standard with neutral white (4000K) LED
  • Up to 80 lumens per Watt efficacy
IP20IK04Electrical class 2Electrical class 15 Year Warranty
≤1.6K lm
≤20 W
≤80 lm/W
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W Cut out Dia(mm) D(mm)
TDS160NW 20W - 4000K 1600 20 80 90 100 100
TDS160NWA3 20W - 4000K 1600 20 80 90 100 100
TDS160NWD 20W - 4000K 1600 20 80 90 100 100
TDS160NWD3 20W - 4000K 1600 20 80 90 100 100
TDS160NWDA3 20W - 4000K 1600 20 80 90 100 100
TDS160NWDD3 20W - 4000K 1600 20 80 90 100 100
TDS160NWDM3 20W - 4000K 1600 20 80 90 100 100
TDS160NWM3 20W - 4000K 1600 20 80 90 100 100
TDS160WW 20W - 3000K 1600 20 80 90 100 100
TDS160WWA3 20W - 3000K 1600 20 80 90 100 100
TDS160WWD 20W - 3000K 1600 20 80 90 100 100
TDS160WWD3 20W - 3000K 1600 20 80 90 100 100
TDS160WWDA3 20W - 3000K 1600 20 80 90 100 100
TDS160WWDD3 20W - 3000K 1600 20 80 90 100 100
TDS160WWDM3 20W - 3000K 1600 20 80 90 100 100
TDS160WWM3 20W - 3000K 1600 20 80 90 100 100
