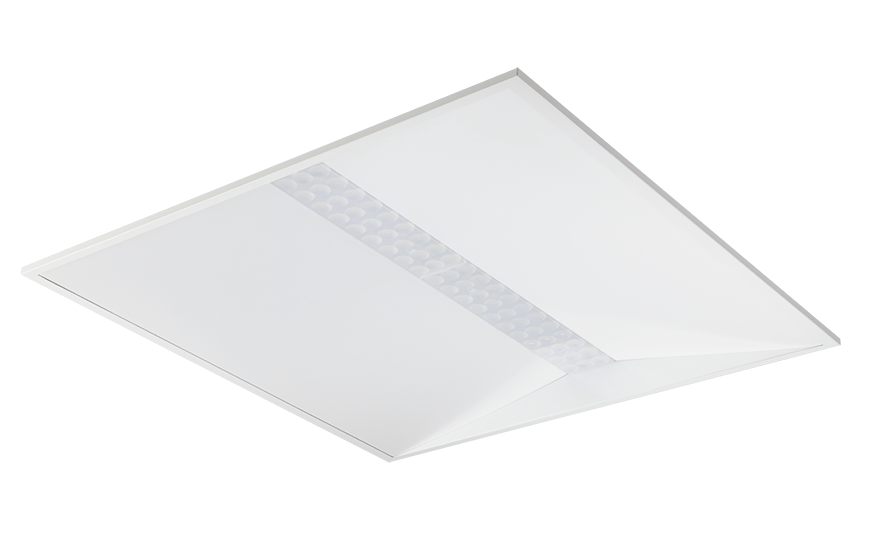

HORIZON FOCUS

Recessed Module with UGR<19 Optic

TM66 Certified options available for specification
Suitable for use in VDU areas such as offices, schools and universities. High output version also ideal for Retail and Commercial areas
Available in 3 different outputs for low, medium or high spacing layouts

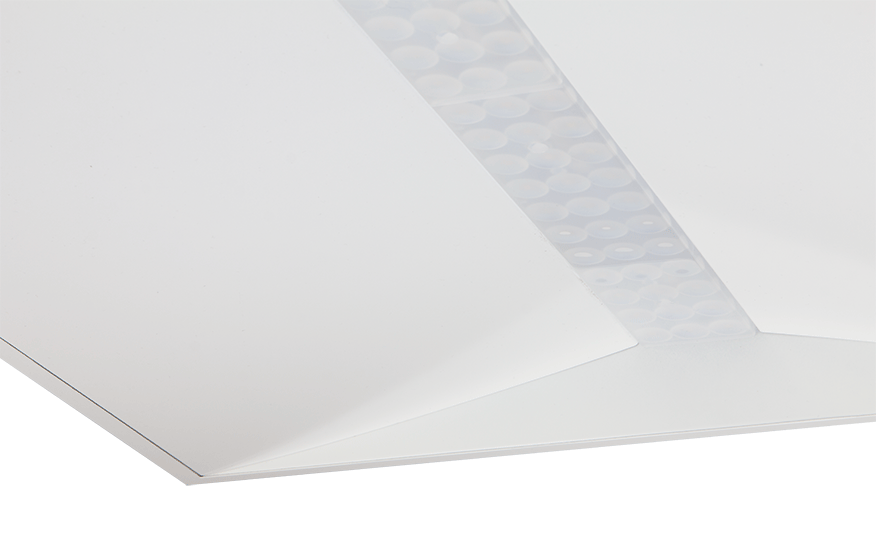

Plastic clear optic lens
Tamlite I-Tech diffuser designed for low glare reduction to BS EN-12464 compliance
Integrated emergency option available
Unique power entry access for easy and quick installation
Up to 3m x 3m spacing
CRI: Ra>80
Steel body finished in white (RAL 9016)
Supplied in neutral white (4000K) LED
Up to 154 lumens per Watt efficacy

≤4K lm

≤26 W

≤154 lm/W

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Colour Temperature (CCTK)

Emergency

DALI

Order Code	Description	lm	W	lm/W	L(mm)	W(mm)	D(mm)
HRF66220NW	15W - 4000K	2200	15	147	595	595	80
HRF66220NWA3	15W - 4000K	2200	15	147	595	595	80
HRF66220NWD	15W - 4000K	2200	15	147	595	595	80
HRF66220NWD3	15W - 4000K	2200	15	147	595	595	80
HRF66220NWDA3	15W - 4000K	2200	15	147	595	595	80
HRF66220NWDD3	15W - 4000K	2200	15	147	595	595	80
HRF66220NWDM3	15W - 4000K	2200	15	147	595	595	80
HRF66220NWM3	15W - 4000K	2200	15	147	595	595	80
HRF66300NW	20W - 4000K	3000	20	150	595	595	80
HRF66300NWA3	20W - 4000K	3000	20	150	595	595	80
HRF66300NWD	20W - 4000K	3000	20	150	595	595	80
HRF66300NWD3	20W - 4000K	3000	20	150	595	595	80
HRF66300NWDA3	20W - 4000K	3000	20	150	595	595	80
HRF66300NWDD3	20W - 4000K	3000	20	150	595	595	80
HRF66300NWDM3	20W - 4000K	3000	20	150	595	595	80
HRF66300NWM3	20W - 4000K	3000	20	150	595	595	80
HRF66400NW	26W - 4000K	4000	26	154	595	595	80
HRF66400NWA3	26W - 4000K	4000	26	154	595	595	80
HRF66400NWD	26W - 4000K	4000	26	154	595	595	80
HRF66400NWD3	26W - 4000K	4000	26	154	595	595	80
HRF66400NWDA3	26W - 4000K	4000	26	154	595	595	80
HRF66400NWDD3	26W - 4000K	4000	26	154	595	595	80
HRF66400NWDM3	26W - 4000K	4000	26	154	595	595	80
HRF66400NWM3	26W - 4000K	4000	26	154	595	595	80
