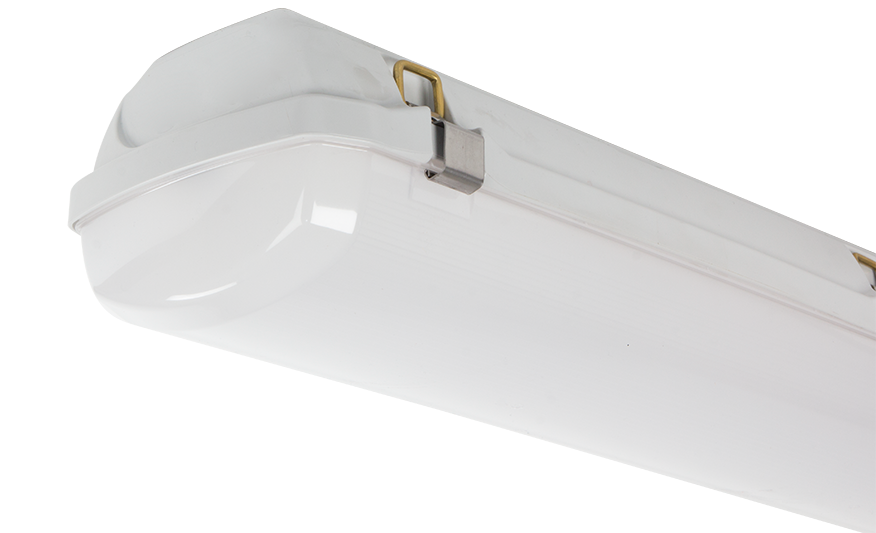

CYCLONE X
Hazardous area weatherproof - Zone 2/22
Information downloads
| Order code | Description | lm | W | lm/W | kg | A (mm) | B (mm) | c (mm) |
|---|---|---|---|---|---|---|---|---|
| XNCF220NW | 18W - 4000K | 2100 | 18 | 117 | 2.20 | 670 | 155 | 105 |
| XNCF440NW | 36W - 4000K | 4100 | 36 | 114 | 3.20 | 1280 | 155 | 105 |
| XNCF240NW | 36W - 4000K | 4100 | 36 | 114 | 2.20 | 670 | 155 | 105 |
| XNCF560NW | 54W - 4000K | 6200 | 54 | 115 | 3.60 | 1580 | 155 | 105 |
| XNCF480NW | 72W - 4000K | 8200 | 72 | 114 | 3.20 | 1280 | 155 | 105 |
| XNCF5100NW | 87W - 4000K | 10300 | 87 | 118 | 3.70 | 1580 | 155 | 105 |
Product accessories
CYCLONE SECURITY DIFFUSER SCREWS
CYCLONE DIFFUSER CLIPSCONTACT US
Product features
- Zone 2/22 hazardous area weatherproof fitting
- Suitable for indoor areas of high risk explosions or outdoor under shelters
- Various mounting options on ceiling or wall
- For use in ambient temperature range of -20°C to + 45°C
- Certified to EN 60079 zone 2 and zone 22 (DUST)
- Easy clip-on design for quick install and maintenance
- ATEX certified for category 3, certified type Ex nR IIC°T6 Gc & Ex tc IIIC T62
- CRI: Ra>80
- Up to 118 lumens per Watt efficacy
- 50,000 hours lifetime (L80/B10)
Construction
- Polycarbonate body finished in white (RAL 9016)
- Opal polycarbonate diffuser
- High impact reinforced body IK08
- Integral driver
- Stainless steel fixing screws
- XNCF5100NW & XNCF480NW standard version only, not available in M3 - Emergency
- Supplied as standard with neutral white (4000K) LED
To specify
High quality long life zone 2 hazardous area weatherproof as per Tamlite CYCLONE X range
Installation notes
Various mounting options on ceiling or wall by means of stainless steel clamp. Special housing perforations or special sealing technologies not required for standard applications.
Emergency options
M3 - 3 hours integrated emergency
