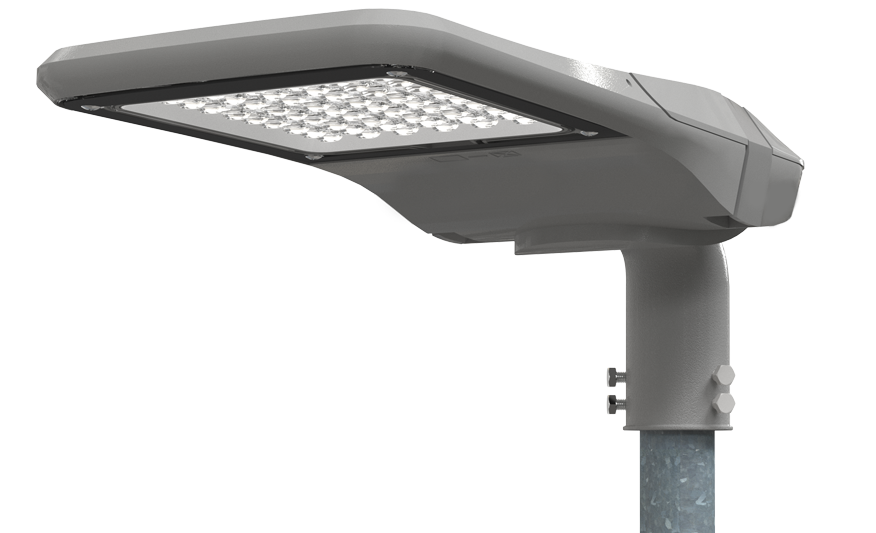

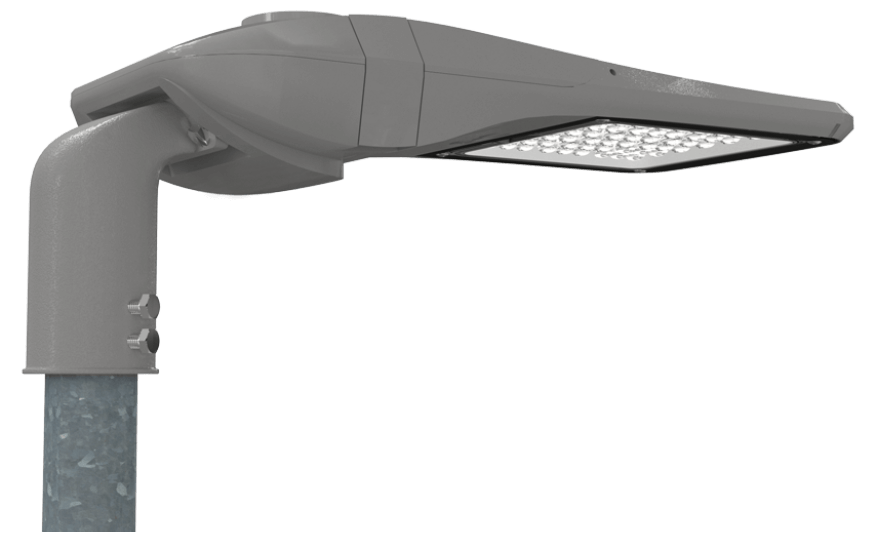

CITY RL

High Performance Road Lantern with T3 Road Optic

  • TM66 Certified options available for specification
  • Suitable for mounting heights up to 12m
  • Available in 5 outputs and 2 body sizes
  • Clear polycarbonate lens with T3 road optic
  • High performance road lantern for use on minor roads
  • Photocell option available
  • Adjustable spigot hinge for tilting to 10°
  • Modern stylish design
  • Dark Sky Approvals on versions with 3000k and DALI options
  • CRI: Ra>80
  • Die-cast aluminium body finished in grey (RAL 9006) or black (RAL 9005)
  • Integral driver
  • Supplied in neutral white (4000K) LED
  • Up to 149 lumens per Watt efficacy
PhotocellIP66IK09Electrical class 17 Years Warranty
≤17.3K lm
≤117 W
≤149 lm/W
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Instruction leaflet
Polar Curve
Photometric Data
Product Leaflet
Order CodeDescriptionlmWlm/WH(mm)L(mm)W(mm)Add to Project
CTRT3280WWB23W - T3 Road Optic - 3000K - Black280023122140230595
CTRT3280WWBPC23W - T3 Road Optic - 3000K - Black280023122190230595
CTRT3280WWG23W - T3 Road Optic - 3000K - Grey280023122140230595
CTRT3280WWGPC23W - T3 Road Optic - 3000K - Grey280023122190230595
CTRT3330NWB23W - T3 Road Optic - 4000K - Black330023143140230595
CTRT3330NWBPC23W - T3 Road Optic - 4000K - Black330023143190230595
CTRT3330NWG23W - T3 Road Optic - 4000K - Grey330023143140230595
CTRT3330NWGPC23W - T3 Road Optic - 4000K - Grey330023143190230595
CTRT3520WWB40W - T3 Road Optic - 3000K - Black520040130140230595
CTRT3520WWBPC40W - T3 Road Optic - 3000K - Black520040130190230595
CTRT3520WWG40W - T3 Road Optic - 3000K - Grey520040130140230595
CTRT3520WWGPC40W - T3 Road Optic - 3000K - Grey520040130190230595
CTRT3570NWB40W - T3 Road Optic - 4000K - Black570040143140230595
CTRT3570NWBPC40W - T3 Road Optic -4000K - Black570040143190230595
CTRT3570NWG40W - T3 Road Optic - 4000K - Grey570040143140230595
CTRT3570NWGPC40W - T3 Road Optic - 4000K - Grey570040143190230595
CTRT3810WWB61W - T3 Road Optic - 3000K - Black810061133140230595
CTRT3810WWBPC61W - T3 Road Optic - 3000K - Black810061133190230595
CTRT3810WWG61W - T3 Road Optic - 3000K - Grey810061133140230595
CTRT3810WWGPC61W - T3 Road Optic - 3000K - Grey810061133190230595
CTRT3860NWB61W - T3 Road Optic - 4000K - Black860061141140230595
CTRT3860NWBPC61W - T3 Road Optic - 4000K - Black860061141190230595
CTRT3860NWG61W - T3 Road Optic - 4000K - Grey860061141140230595
CTRT3860NWGPC61W - T3 Road Optic - 4000K - Grey860061141190230595
CTRT31260WWB88W - T3 Road Optic - 3000K - Black1260088143140290700
CTRT31260WWBPC88W - T3 Road Optic - 3000K - Black1260088143190290700
CTRT31260WWG88W - T3 Road Optic - 3000K - Grey1260088143140290700
CTRT31260WWGPC88W - T3 Road Optic - 3000K Grey1260088143190290700
CTRT31310NWB88W - T3 Road Optic - 4000K - Black1310088149140290700
CTRT31310NWBPC88W - T3 Road Optic - 4000K - Black1310088149190290700
CTRT31310NWG88W - T3 Road Optic - 4000K - Grey1310088149140290700
CTRT31310NWGPC88W - T3 Road Optic - 4000K - Grey1310088149190290700
CTRT31630WWB117W - T3 Road Optic - 3000K - Black16300117139140290700
CTRT31630WWBPC117W - T3 Road Optic - 3000K - Black16300117139190290700
CTRT31630WWG117W - T3 Road Optic - 3000K - Grey16300117139140290700
CTRT31630WWGPC117W - T3 Road Optic - 3000K - Grey16300117139190290700
CTRT31730NWB117W - T3 Road Optic - 4000K - Black17300117148140290700
CTRT31730NWBPC117W - T3 Road Optic - 4000K - Black17300117148190290700
CTRT31730NWG117W - T3 Road Optic - 4000K - Grey17300117148140290700
CTRT31730NWGPC117W - T3 Road Optic - 4000K - Grey17300117148190290700
