CITY PT

Modern Post Top Lantern with Asymmetric T4 Area Optic

TM66 Certified options available for specification
Available in wide range of outputs, up to 16,700 lumens
Modern, stylish post top lantern for city beautification projects
Supplied with asymmetric T4 Area Optic for open area/car parks
Photocell option available

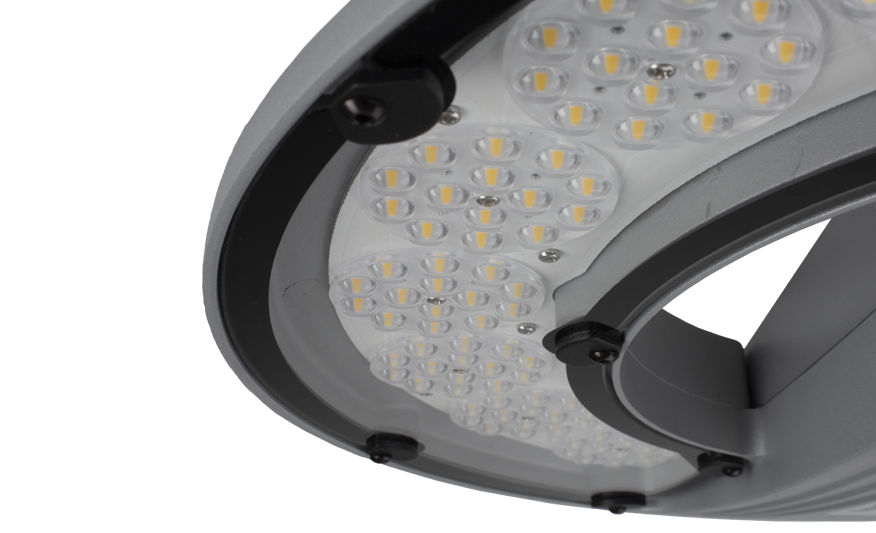

Polycarbonate micro optic with glass cover
Dark Sky Approvals on versions with 3000k and DALI options
CRI: Ra>80

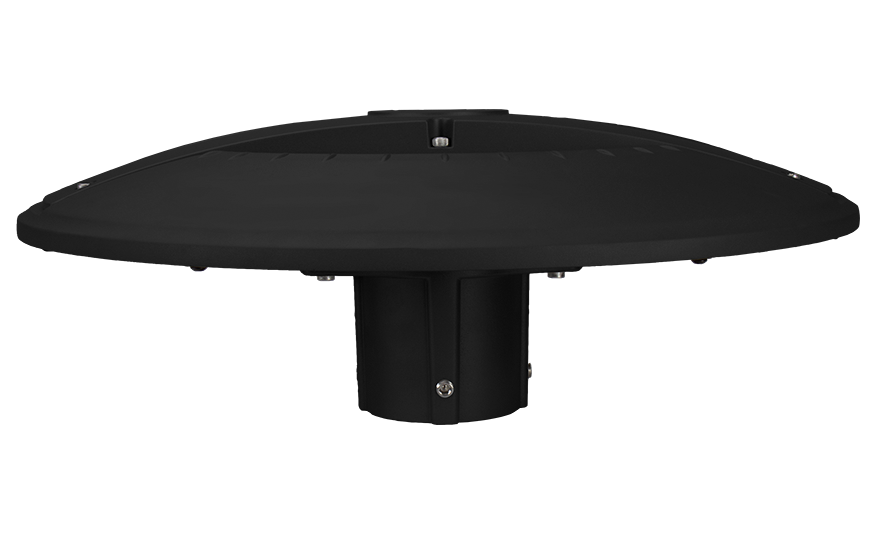

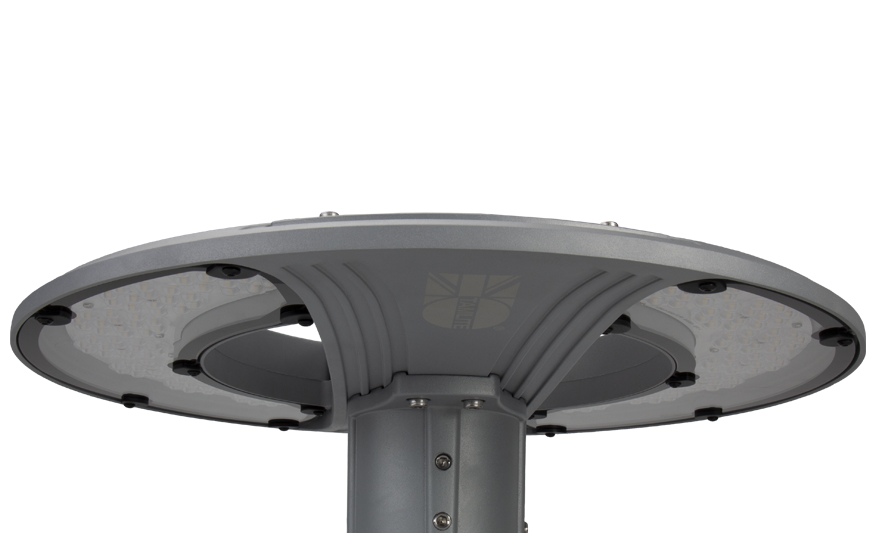

Die-cast aluminium body finished in grey (RAL 9006) or black (RAL 9005)
Supplied in neutral white (4000K) LED
Up to 147 lumens per Watt efficacy

≤40K lm

≤300 W

≤147 lm/W

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Colour Temperature (CCTK)

Vision Controls

DALI

Order Code	Description	lm	W	lm/W	Dia(mm)	D(mm)
CPT580T4AWWB	49W - T4 Area Optic - 3000K - Black	5800	49	118	460	168
CPT580T4AWWBPC	49W - T4 Area Optic - 3000K - Black - Photocell	5800	49	118	460	168
CPT580T4AWWDG	49W - T4 Area Optic - 3000K - Grey	5800	49	118	460	168
CPT580T4AWWDGPC	49W - T4 Area Optic - 3000K - Grey	5800	49	118	460	168
CPT580T4AWWG	49W - T4 Area Optic - 3000K - Grey	5800	49	118	460	168
CPT580T4AWWGPC	49W - T4 Area Optic - 3000K - Grey - Photocell	5800	49	118	460	168
CPT630T4ANWB	49W - T4 Area Optic - 4000K - Black	6300	49	129	460	168
CPT630T4ANWBPC	49W - T4 Area Optic - 4000K - Black - Photocell	6300	49	129	460	168
CPT630T4ANWDG	49W - T4 Area Optic - 4000K - Grey	6300	49	129	460	168
CPT630T4ANWDGPC	49W - T4 Area Optic - 4000K - Grey	6300	49	129	460	168
CPT630T4ANWG	49W - T4 Area Optic - 4000K - Grey	6300	49	129	460	168
CPT630T4ANWGPC	49W - T4 Area Optic - 4000K - Grey - Photocell	6300	49	129	460	168
CPT580T4AWWDB	49W - T4 Area Optic - 3000K - Black	5800	49	118	460	168
CPT580T4AWWDBPC	49W - T4 Area Optic - 3000K - Black	5800	49	118	460	168
CPT630T4ANWDB	49W - T4 Area Optic - 4000K - Black	6300	49	129	460	168
CPT630T4ANWDBPC	49W - T4 Area Optic - 4000K - Black	6300	49	129	460	168
CPT810T4AWWB	74W - T4 Area Optic - 3000K - Black	8100	74	109	460	168
CPT810T4AWWBPC	74W - T4 Area Optic - 3000K - Black - Photocell	8100	74	109	460	168
CPT810T4AWWG	74W - T4 Area Optic - 3000K - Grey	8100	74	109	460	168
CPT810T4AWWGPC	74W - T4 Area Optic - 3000K - Grey - Photocell	8100	74	109	460	168
CPT870T4ANWB	74W - T4 Area Optic - 4000K - Black	8700	74	118	460	168
CPT870T4ANWBPC	74W - T4 Area Optic - 4000K - Black - Photocell	8700	74	118	460	168
CPT870T4ANWG	74W - T4 Area Optic - 4000K - Grey	8700	74	118	460	168
CPT870T4ANWGPC	74W - T4 Area Optic - 4000K - Grey - Photocell	8700	74	118	460	168
CPT810T4AWWDG	74W - T4 Area Optic - 3000K - Grey	8100	74	109	460	168
CPT810T4AWWDGPC	74W - T4 Area Optic - 3000K - Grey	8100	74	109	460	168
CPT870T4ANWDG	74W - T4 Area Optic - 4000K - Grey	8700	74	118	460	168
CPT870T4ANWDGPC	74W - T4 Area Optic - 4000K - Grey	8700	74	118	460	168
CPT1530T4AWWB	149W - T4 Area Optic - 3000K - Black	15300	149	103	460	168
CPT1530T4AWWBPC	149W - T4 Area Optic - 3000K - Black - Photocell	15300	149	103	460	168
CPT1530T4AWWG	149W - T4 Area Optic - 3000K - Grey	15300	149	103	460	168
CPT1530T4AWWGPC	149W - T4 Area Optic - 3000K - Grey - Photocell	15300	149	103	460	168
CPT1670T4ANWB	149W - T4 Area Optic - 4000K - Black	16700	149	112	460	168
CPT1670T4ANWBPC	149W - T4 Area Optic - 4000K - Black - Photocell	16700	149	112	460	168
CPT1670T4ANWG	149W - T4 Area Optic - 4000K - Grey	16700	149	112	460	168
CPT1670T4ANWGPC	149W - T4 Area Optic - 4000K - Grey - Photocell	16700	149	112	460	168
CPT810T4AWWDB	74W - T4 Area Optic - 3000K - Black	8100	74	109	460	168
CPT810T4AWWDBPC	74W - T4 Area Optic - 3000K - Black	8100	74	109	460	168
CPT870T4ANWDB	74W - T4 Area Optic - 4000K - Black	8700	74	118	460	168
CPT870T4ANWDBPC	74W - T4 Area Optic - 4000K - Black	8700	74	118	460	168
CPT2200T4ANWB	150W - T4 Area Optic - 4000K - Black	22000	150	147	520	180
CPT2200T4ANWBPC	150W - T4 Area Optic - 4000K - Black - Photocell	22000	150	147	520	180
CPT2200T4ANWG	150W - T4 Area Optic - 4000K - Grey	22000	150	147	520	180
CPT2200T4ANWGPC	150W - T4 Area Optic - 4000K - Grey - Photocell	22000	150	147	520	180
CPT2200T4AWWB	150W - T4 Area Optic - 3000K - Black	22000	150	147	520	180
CPT2200T4AWWBPC	150W - T4 Area Optic - 3000K - Black - Photocell	22000	150	147	520	180
CPT2200T4AWWG	150W - T4 Area Optic - 3000K - Grey	22000	150	147	520	180
CPT2200T4AWWGPC	150W - T4 Area Optic - 3000K - Grey - Photocell	22000	150	147	520	180
CPT1530T4AWWDG	149W - T4 Area Optic - 3000K - Grey	15300	149	103	460	168
CPT1530T4AWWDGPC	149W - T4 Area Optic - 3000K - Grey	15300	149	103	460	168
CPT1670T4ANWDG	149W - T4 Area Optic - 4000K - Grey	16700	149	112	460	168
CPT1670T4ANWDGPC	149W - T4 Area Optic - 4000K - Grey	16700	149	112	460	168
CPT3200T4ANWB	240W - T4 Area Optic - 4000K - Black	32000	240	133	520	180
CPT3200T4ANWBPC	240W - T4 Area Optic - 4000K - Black - Photocell	32000	240	133	520	180
CPT3200T4ANWG	240W - T4 Area Optic - 4000K - Grey	32000	240	133	520	180
CPT3200T4ANWGPC	240W - T4 Area Optic - 4000K - Grey - Photocell	32000	240	133	520	180
CPT3200T4AWWB	240W - T4 Area Optic - 3000K - Black	32000	240	133	520	180
CPT3200T4AWWBPC	240W - T4 Area Optic - 3000K - Black - Photocell	32000	240	133	520	180
CPT3200T4AWWG	240W - T4 Area Optic - 3000K - Grey	32000	240	133	520	180
CPT3200T4AWWGPC	240W - T4 Area Optic - 3000K - Grey - Photocell	32000	240	133	520	180
CPT1530T4AWWDB	149W - T4 Area Optic - 3000K - Black	15300	149	103	460	168
CPT1530T4AWWDBPC	149W - T4 Area Optic - 3000K - Black	15300	149	103	460	168
CPT1670T4ANWDB	149W - T4 Area Optic - 4000K - Black	16700	149	112	460	168
CPT1670T4ANWDBPC	149W - T4 Area Optic - 4000K - Black	16700	149	112	460	168
CPT4000T4ANWB	300W - T4 Area Optic - 4000K - Black	40000	300	133	520	180
CPT4000T4ANWBPC	300W - T4 Area Optic - 4000K - Black - Photocell	40000	300	133	520	180
CPT4000T4ANWG	300W - T4 Area Optic - 4000K - Grey	40000	300	133	520	180
CPT4000T4ANWGPC	300W - T4 Area Optic - 4000K - Grey - Photocell	40000	300	133	520	180
CPT4000T4AWWB	300W - T4 Area Optic - 3000K - Black	40000	300	133	520	180
CPT4000T4AWWBPC	300W - T4 Area Optic - 3000K - Black - Photocell	40000	300	133	520	180
CPT4000T4AWWG	300W - T4 Area Optic - 3000K - Grey	40000	300	133	520	180
CPT4000T4AWWGPC	300W - T4 Area Optic - 3000K - Grey - Photocell	40000	300	133	520	180
