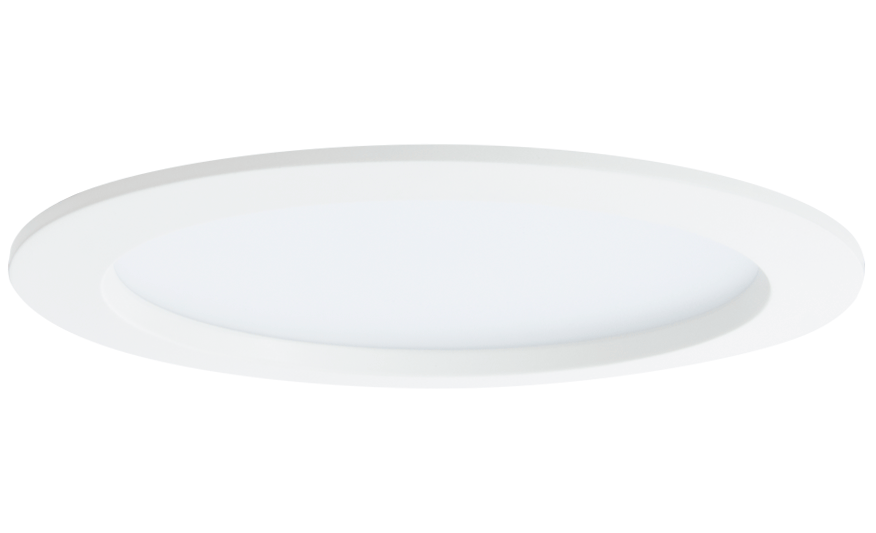

ASTRO

Recessed low-profile downlight

  • High output LED downlight suitable for corridors and toilets
  • Recessed into plasterboard or exposed grid ceiling via spring clips and wired to 3-way connection on driver
  • Low glare TP(a) rated opal diffuser
  • Available in 3 outputs
  • Die-cast aluminium body finished in white (RAL 9010)
  • Gear options including DALI and emergency available
  • Opal Polycarbonate TP(a) diffuser
  • Remote driver
  • Supplied as standard with neutral white (4000K) LED
  • Up to 110 lumens per Watt efficacy
  • CRI: Ra>80
IP54IK04Electrical class 25 Year Warranty
≤3K lm
≤31 W
≤110 lm/W
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W Cut out Dia(mm) D(mm)
AST110NW 10W - 4000K 1100 10 110 205 230 45
AST110NWA3 10W - 4000K 1100 13 85 205 230 45
AST110NWD 10W - 4000K 1100 10 110 205 230 45
AST110NWD3 10W - 4000K 1100 13 85 205 230 45
AST110NWDA3 10W - 4000K 1100 13 85 205 230 45
AST110NWDD3 10W - 4000K 1100 13 85 205 230 45
AST110NWDM3 10W - 4000K 1100 12 92 205 230 45
AST110NWM3 10W - 4000K 1100 12 92 205 230 45
AST110WW 10W - 3000K 1100 10 110 205 230 45
AST110WWA3 10W - 3000K 1100 13 85 205 230 45
AST110WWD 10W - 3000K 1100 10 110 205 230 45
AST110WWD3 10W - 3000K 1100 13 85 205 230 45
AST110WWDA3 10W - 3000K 1100 13 85 205 230 45
AST110WWDD3 10W - 3000K 1100 13 85 205 230 45
AST110WWDM3 10W - 3000K 1100 12 92 205 230 45
AST110WWM3 10W - 3000K 1100 12 92 205 230 45
AST220NW 20W - 4000K 2200 20 110 205 230 45
AST220NWA3 20W - 4000K 2200 23 96 205 230 45
AST220NWD 20W - 4000K 2200 20 110 205 230 45
AST220NWD3 20W - 4000K 2200 23 96 205 230 45
AST220NWDA3 20W - 4000K 2200 23 96 205 230 45
AST220NWDD3 20W - 4000K 2200 23 96 205 230 45
AST220NWDM3 20W - 4000K 2200 22 100 205 230 45
AST220NWM3 20W - 4000K 2200 22 100 205 230 45
AST220WW 20W - 3000K 2200 20 110 205 230 45
AST220WWA3 20W - 3000K 2200 23 96 205 230 45
AST220WWD 20W - 3000K 2200 20 110 205 230 45
AST220WWD3 20W - 3000K 2200 23 96 205 230 45
AST220WWDA3 20W - 3000K 2200 23 96 205 230 45
AST220WWDD3 20W - 3000K 2200 23 96 205 230 45
AST220WWDM3 20W - 3000K 2200 22 100 205 230 45
AST220WWM3 20W - 3000K 2200 22 100 205 230 45
AST300NW 28W - 4000K 3000 28 107 205 230 45
AST300NWA3 28W - 4000K 3000 31 97 205 230 45
AST300NWD 28W - 4000K 3000 28 107 205 230 45
AST300NWD3 28W - 4000K 3000 31 97 205 230 45
AST300NWDA3 28W - 4000K 3000 31 97 205 230 45
AST300NWDD3 28W - 4000K 3000 31 97 205 230 45
AST300NWDM3 28W - 4000K 3000 30 100 205 230 45
AST300NWM3 28W - 4000K 3000 30 100 205 230 45
AST300WW 28W - 3000K 3000 28 107 205 230 45
AST300WWA3 28W - 3000K 3000 31 97 205 230 45
AST300WWD 28W - 3000K 3000 28 107 205 230 45
AST300WWD3 28W - 3000K 3000 31 97 205 230 45
AST300WWDA3 28W - 3000K 3000 31 97 205 230 45
AST300WWDD3 28W - 3000K 3000 31 97 205 230 45
AST300WWDM3 28W - 3000K 3000 30 100 205 230 45
AST300WWM3 28W - 3000K 3000 30 100 205 230 45
