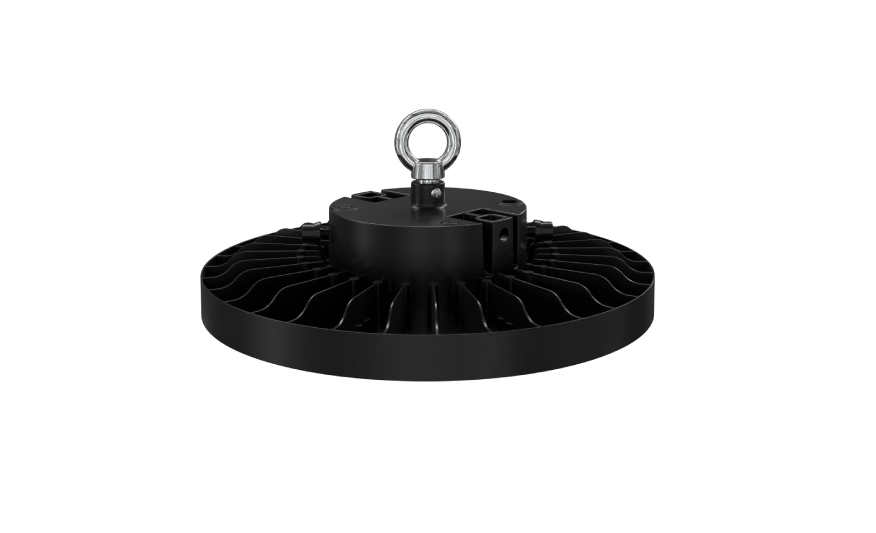

ALPHA

High output high bay

  • Suspended via hook (supplied) and supplied with 1.5m of 3-core black mains flex. View or download the PIR commissioning instructions sheet
  • Available in 3 sizes and 4 outputs
  • High output LED high bay, ideal for production and warehouse areas
  • Separate stirrup mounting bracket available
  • Die-cast aluminium body finished in black (RAL 9005)
  • Supplied as standard with neutral white (4000K) LED
  • Up to 145 lumens per Watt efficacy
  • Integral driver
  • CRI: Ra>80
Microwave sensor + corridor functionIP65IK08Electrical class 15 Year Warranty
≤32K lm
≤240 W
≤145 lm/W
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Product Leaflet
Instruction leaflet
Polar Curve
Photometric Data
Order Code Description lm W lm/W Dia(mm) H(mm)
ALP100WHALF 14500 100 145 270 160
ALPA1450WNW 100W - 4000K - Wide beam 14500 100 145 270 160
ALPA1450WNWRMDCF 100W - 4000K - Wide beam 14500 100 145 270 160
ALPA2100WNW 150W - 4000K - Wide beam 21000 150 140 300 180
ALPA2100WNWMDCF 150W - 4000K - Wide beam 21000 150 140 300 180
ALPA2710WNW 200W - 4000K - Wide beam 27100 200 136 330 180
ALPA2710WNWMDCF 200W - 4000K - Wide beam 27100 200 136 330 180
ALPA3200WNW 240W - 4000K - Wide beam 32000 240 133 330 180
