ADVANCE

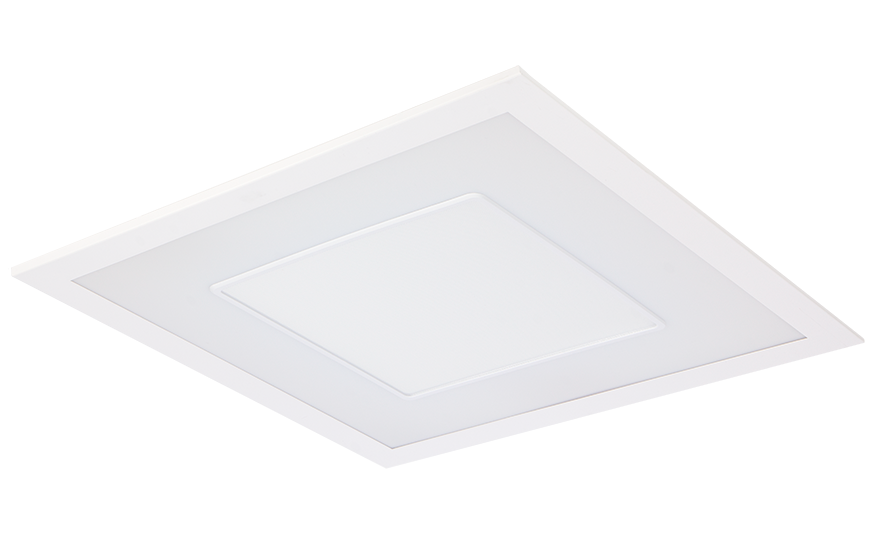

Recessed office module
Information downloads
| Order code | Description | lm | W | lm/W | kg | A (mm) | B (mm) | C (mm) | Cut out ±1 |
|---|---|---|---|---|---|---|---|---|---|
| ADV200NW | 17W - 4000K | 2000 | 17 | 118 | 4.30 | 595 | 595 | 70 | 595 x 595 |
| ADV300NW | 25W - 4000K | 3000 | 25 | 120 | 4.30 | 595 | 595 | 70 | 595 x 595 |
| ADV400NW | 34W - 4000K | 4000 | 34 | 118 | 4.30 | 595 | 595 | 70 | 595 x 595 |
CAPITAL S
CAPITAL P
CAPITAL B
CAPITAL
MODLED LG
MODLED
LOGIK
TYPHOON
HORIZON FOCUS
CONTACT US
Product features
- Recessed LED module with profiled diffuser
- I-Tech contoured diffuser provides excellent glare control with BS EN-12464 compliance
- Suitable for office installations and general or task area lighting
- TP(a) rated diffuser
- Gear options including DALI and emergency available
- CRI: Ra>80
- Up to 120 lumens per Watt efficacy
- >50,000 hours lifetime (L80/B10)
Construction
- Steel body finished in white (RAL 9016)
- Opal and semi-prismatic polycarbonate diffuser - TP(a) rated
- Supplied as standard with neutral white (4000K) LED
To specify
Recessed LED module with glare control diffuser as per Tamlite ADVANCE range
Installation notes
Recessed into exposed T-Bar ceiling with connection to rear mounted terminal block
Gear options
D - Dimmable DALI
M3 - 3 hours integrated emergency
A3 - Emergency self test
D3 - DALI self test
CT – Tunable white (2700K – 6500K)
