ACADEMY

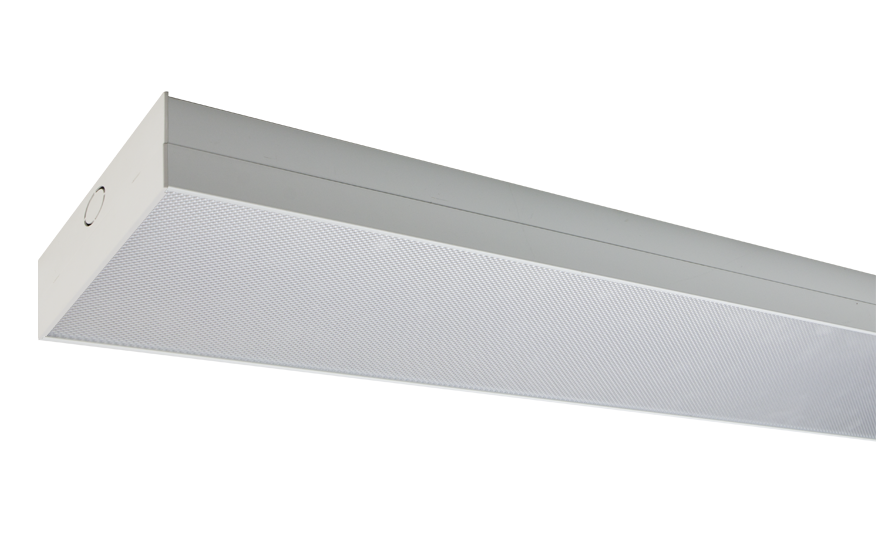

Low glare surface module
- Ideal replacement for T8 or T5 surface modules
- Suitable for offices and schools where a low glare solution is required
- Surface mount via rear entry BESA fixings or suspended via 3.0m wire suspension kit
- Tamlite I-Tech diffuser designed for low glare reduction to BS EN-12464 compliance
- Available in standard or high outputs in 1200mm, 1500mm and 1800mm models
- Tri-colour easy switch technology from cool white (5000K) or neutral white (4000K) or warm white (3000K)
- Easy to fit construction with separate spine fixing
- Extruded aluminium body finished in white (RAL 9010)
- Polycarbonate end caps
- CRI: Ra>80
- Microprism PMMA diffuser
Product Filter
If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.
| Order Code | Description | lm | W | lm/W | L(mm) | W(mm) | D(mm) |
|---|---|---|---|---|---|---|---|
| ACA4200CS | 18W - 3000K/4000K/5000K | 2000 | 18 | 111 | 1200 | 120 | 60 |
| ACA4200CSA3 | 18W - 3000K/4000K/5000K | 2000 | 21 | 95 | 1200 | 120 | 60 |
| ACA4200CSA3VB1 | 18W - 3000K/4000K/5000K | 2000 | 21 | 95 | 1307 | 120 | 60 |
| ACA4200CSA3VB2 | 18W - 3000K/4000K/5000K | 2000 | 21 | 95 | 1307 | 120 | 60 |
| ACA4200CSD | 18W - 3000K/4000K/5000K | 2000 | 18 | 111 | 1200 | 120 | 60 |
| ACA4200CSD3 | 18W - 3000K/4000K/5000K | 2000 | 21 | 95 | 1200 | 120 | 60 |
| ACA4200CSD3VB2 | 18W - 3000K/4000K/5000K | 2000 | 20 | 100 | 1307 | 120 | 60 |
| ACA4200CSDA3 | 18W - 3000K/4000K/5000K | 2000 | 21 | 95 | 1200 | 120 | 60 |
| ACA4200CSDA3VB3 | 18W - 3000K/4000K/5000K | 2000 | 21 | 95 | 1307 | 120 | 60 |
| ACA4200CSDD3 | 18W - 3000K/4000K/5000K | 2000 | 21 | 95 | 1200 | 120 | 60 |
| ACA4200CSDD3VB3 | 18W - 3000K/4000K/5000K | 2000 | 21 | 95 | 1307 | 120 | 60 |
| ACA4200CSDM3 | 18W - 3000K/4000K/5000K | 2000 | 20 | 100 | 1200 | 120 | 60 |
| ACA4200CSDM3VB3 | 18W - 3000K/4000K/5000K | 2000 | 20 | 100 | 1307 | 120 | 60 |
| ACA4200CSDVB3 | 18W - 3000K/4000K/5000K | 2000 | 18 | 111 | 1307 | 120 | 60 |
| ACA4200CSM3 | 18W - 3000K/4000K/5000K | 2000 | 20 | 100 | 1200 | 120 | 60 |
| ACA4200CSM3VB1 | 18W - 3000K/4000K/5000K | 2000 | 20 | 100 | 1307 | 120 | 60 |
| ACA4200CSM3VB2 | 18W - 3000K/4000K/5000K | 2000 | 20 | 100 | 1307 | 120 | 60 |
| ACA4200CSVB1 | 18W - 3000K/4000K/5000K | 2000 | 18 | 111 | 1307 | 120 | 60 |
| ACA4200CSVB2 | 18W - 3000K/4000K/5000K | 2000 | 18 | 111 | 1307 | 120 | 60 |
| ACA4340CS | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1200 | 120 | 60 |
| ACA4340CSA3 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1200 | 120 | 60 |
| ACA4340CSA3VB1 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1200 | 120 | 60 |
| ACA4340CSA3VB2 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1200 | 120 | 60 |
| ACA4340CSD | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1200 | 120 | 60 |
| ACA4340CSD3 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1200 | 120 | 60 |
| ACA4340CSDA3 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1200 | 120 | 60 |
| ACA4340CSDA3VB3 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1200 | 120 | 60 |
| ACA4340CSDD3 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1200 | 120 | 60 |
| ACA4340CSDD3VB3 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1200 | 120 | 60 |
| ACA4340CSDM3 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1200 | 120 | 60 |
| ACA4340CSDM3VB3 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1200 | 120 | 60 |
| ACA4340CSDVB3 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1307 | 120 | 60 |
| ACA4340CSM3 | 31W - 3000K/4000K/5000K | 3400 | 33 | 103 | 1200 | 120 | 60 |
| ACA4340CSM3VB1 | 31W - 3000K/4000K/5000K | 3400 | 33 | 103 | 1307 | 120 | 60 |
| ACA4340CSM3VB2 | 31W - 3000K/4000K/5000K | 3400 | 33 | 103 | 1307 | 120 | 60 |
| ACA4340CSVB1 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1307 | 120 | 60 |
| ACA4340CSVB2 | 31W - 3000K/4000K/5000K | 3400 | 31 | 110 | 1307 | 120 | 60 |
| ACA5240CS | 22W - 3000K/4000K/5000K | 2400 | 22 | 109 | 1500 | 120 | 60 |
| ACA5240CSA3 | 22W - 3000K/4000K/5000K | 2400 | 25 | 96 | 1500 | 120 | 60 |
| ACA5240CSA3VB1 | 22W - 3000K/4000K/5000K | 2400 | 25 | 96 | 1607 | 120 | 60 |
| ACA5240CSA3VB2 | 22W - 3000K/4000K/5000K | 2400 | 25 | 96 | 1607 | 120 | 60 |
| ACA5240CSD | 22W - 3000K/4000K/5000K | 2400 | 22 | 109 | 1500 | 120 | 60 |
| ACA5240CSD3 | 22W - 3000K/4000K/5000K | 2400 | 25 | 96 | 1500 | 120 | 60 |
| ACA5240CSDA3 | 22W - 3000K/4000K/5000K | 2400 | 25 | 96 | 1500 | 120 | 60 |
| ACA5240CSDA3VB3 | 22W - 3000K/4000K/5000K | 2400 | 25 | 96 | 1607 | 120 | 60 |
| ACA5240CSDD3 | 22W - 3000K/4000K/5000K | 2400 | 25 | 96 | 1500 | 120 | 60 |
| ACA5240CSDD3VB3 | 22W - 3000K/4000K/5000K | 2400 | 25 | 96 | 1607 | 120 | 60 |
| ACA5240CSDM3 | 22W - 3000K/4000K/5000K | 2400 | 24 | 100 | 1500 | 120 | 60 |
| ACA5240CSDM3VB3 | 22W - 3000K/4000K/5000K | 2400 | 24 | 100 | 1607 | 120 | 60 |
| ACA5240CSDVB3 | 22W - 3000K/4000K/5000K | 2400 | 22 | 109 | 1607 | 120 | 60 |
| ACA5240CSM3 | 22W - 3000K/4000K/5000K | 2400 | 24 | 100 | 1500 | 120 | 60 |
| ACA5240CSM3VB1 | 22W - 3000K/4000K/5000K | 2400 | 24 | 100 | 1607 | 120 | 60 |
| ACA5240CSM3VB2 | 22W - 3000K/4000K/5000K | 2400 | 24 | 100 | 1607 | 120 | 60 |
| ACA5240CSVB1 | 22W - 3000K/4000K/5000K | 2400 | 22 | 109 | 1607 | 120 | 60 |
| ACA5240CSVB2 | 22W - 3000K/4000K/5000K | 2400 | 22 | 109 | 1607 | 120 | 60 |
| ACA5440CS | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSA3 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSA3VB1 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSA3VB2 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSD | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSD3 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSDA3 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSDA3VB3 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSDD3 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSDD3VB3 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSDM3 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSDM3VB3 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSDVB3 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSM3 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSM3VB1 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSM3VB2 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSVB1 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA5440CSVB2 | 39W - 3000K/4000K/5000K | 4400 | 39 | 113 | 1500 | 120 | 60 |
| ACA6290CS | 26W - 3000K/4000K/5000K | 2900 | 26 | 112 | 1800 | 120 | 60 |
| ACA6290CSA3 | 26W - 3000K/4000K/5000K | 2900 | 29 | 100 | 1800 | 120 | 60 |
| ACA6290CSA3VB1 | 26W - 3000K/4000K/5000K | 2900 | 29 | 100 | 1907 | 120 | 60 |
| ACA6290CSA3VB2 | 26W - 3000K/4000K/5000K | 2900 | 29 | 100 | 1907 | 120 | 60 |
| ACA6290CSD | 26W - 3000K/4000K/5000K | 2900 | 26 | 112 | 1800 | 120 | 60 |
| ACA6290CSD3 | 26W - 3000K/4000K/5000K | 2900 | 29 | 100 | 1800 | 120 | 60 |
| ACA6290CSDA3 | 26W - 3000K/4000K/5000K | 2900 | 29 | 100 | 1800 | 120 | 60 |
| ACA6290CSDA3VB3 | 26W - 3000K/4000K/5000K | 2900 | 29 | 100 | 1907 | 120 | 60 |
| ACA6290CSDD3 | 26W - 3000K/4000K/5000K | 2900 | 29 | 100 | 1800 | 120 | 60 |
| ACA6290CSDD3VB3 | 26W - 3000K/4000K/5000K | 2900 | 29 | 100 | 1907 | 120 | 60 |
| ACA6290CSDM3 | 26W - 3000K/4000K/5000K | 2900 | 28 | 104 | 1800 | 120 | 60 |
| ACA6290CSDM3VB3 | 26W - 3000K/4000K/5000K | 2900 | 28 | 104 | 1907 | 120 | 60 |
| ACA6290CSDVB3 | 26W - 3000K/4000K/5000K | 2900 | 26 | 112 | 1907 | 120 | 60 |
| ACA6290CSM3 | 26W - 3000K/4000K/5000K | 2900 | 28 | 104 | 1800 | 120 | 60 |
| ACA6290CSM3VB1 | 26W - 3000K/4000K/5000K | 2900 | 28 | 104 | 1907 | 120 | 60 |
| ACA6290CSM3VB2 | 26W - 3000K/4000K/5000K | 2900 | 28 | 104 | 1907 | 120 | 60 |
| ACA6290CSVB1 | 26W - 3000K/4000K/5000K | 2900 | 26 | 112 | 1907 | 120 | 60 |
| ACA6290CSVB2 | 26W - 3000K/4000K/5000K | 2900 | 26 | 112 | 1907 | 120 | 60 |
| ACA6540CS | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1800 | 120 | 60 |
| ACA6540CSA3 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1800 | 120 | 60 |
| ACA6540CSA3VB1 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1907 | 120 | 60 |
| ACA6540CSA3VB2 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1907 | 120 | 60 |
| ACA6540CSD | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1800 | 120 | 60 |
| ACA6540CSD3 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1800 | 120 | 60 |
| ACA6540CSDA3 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1800 | 120 | 60 |
| ACA6540CSDA3VB3 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1907 | 120 | 60 |
| ACA6540CSDD3 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1907 | 120 | 60 |
| ACA6540CSDD3VB3 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1907 | 120 | 60 |
| ACA6540CSDM3 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1800 | 120 | 60 |
| ACA6540CSDM3VB3 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1907 | 120 | 60 |
| ACA6540CSDVB3 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1907 | 120 | 60 |
| ACA6540CSM3 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1800 | 120 | 60 |
| ACA6540CSM3VB1 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1907 | 120 | 60 |
| ACA6540CSM3VB2 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1907 | 120 | 60 |
| ACA6540CSVB1 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1907 | 120 | 60 |
| ACA6540CSVB2 | 46W - 3000K/4000K/5000K | 5400 | 46 | 117 | 1907 | 120 | 60 |
