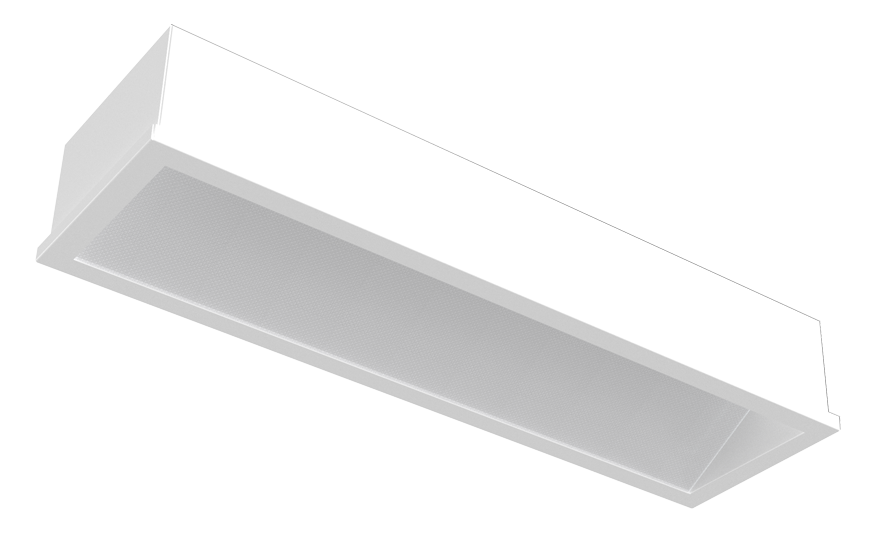

OPTIS P

Recessed Asymmetric Module for Plasterboard Ceilings

  • Suitable for hospital corridors and ward lighting
  • Available in 2 lengths
  • Asymmetric distribution
  • Integrated emergency option available
  • Made in Britain
  • Steel body finished in white (RAL 9016)
  • Polycarbonate Tp(a) rated microprism diffuser
  • Integral driver
  • CRI: Ra>80
  • Supplied in neutral white (4000K) LED
  • Up to 130 lumens per Watt efficacy
IP20IK04Electrical class 17 Years Warranty
≤3K lm
≤23 W
≤130 lm/W
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Instruction leaflet
Photometric Data
Product Leaflet
Polar Curve
Order CodeDescriptionlmWlm/WCut outL(mm)W(mm)D(mm)Add to Project
OPP2150NW13W - 4000K150013115605 x 180616191102
OPP2150NWA313W - 4000K150013115605 x 180616191102
OPP2150NWD13W - 4000K150013115605 x 180616191102
OPP2150NWD313W - 4000K150013115605 x 180616191102
OPP2150NWDA313W - 4000K150013115605 x 180616191102
OPP2150NWDD313W - 4000K150013115605 x 180616191102
OPP2150NWDM313W - 4000K150013115605 x 180616191102
OPP2150NWM313W - 4000K150013115605 x 180616191102
OPP4300NW23W - 4000K3000231301205 x 1801216191102
OPP4300NWA323W - 4000K3000231301205 x 1801216191102
OPP4300NWD23W - 4000K3000231301205 x 1801216191102
OPP4300NWD323W - 4000K3000231301205 x 1801216191102
OPP4300NWDA323W - 4000K3000231301205 x 1801216191102
OPP4300NWDD323W - 4000K3000231301205 x 1801216191102
OPP4300NWDM323W - 4000K3000231301205 x 1801216191102
OPP4300NWM323W - 4000K3000231301205 x 1801216191102
