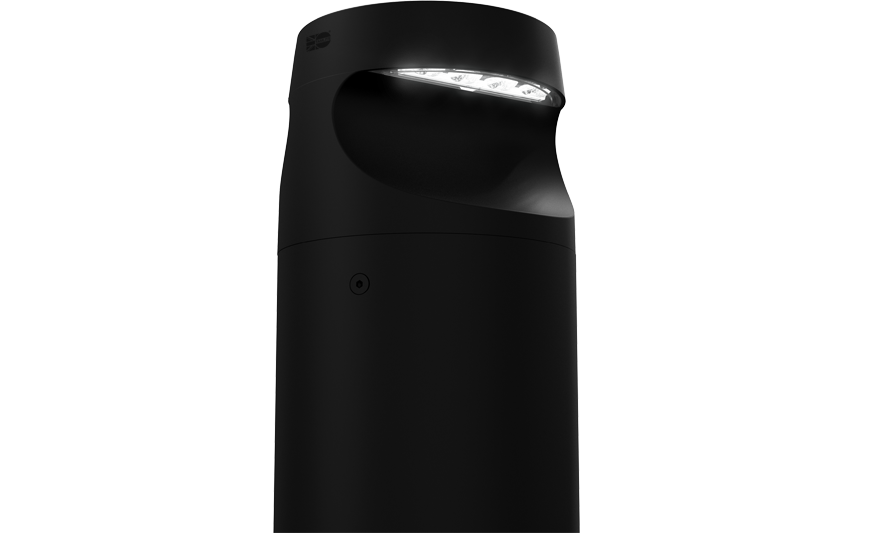

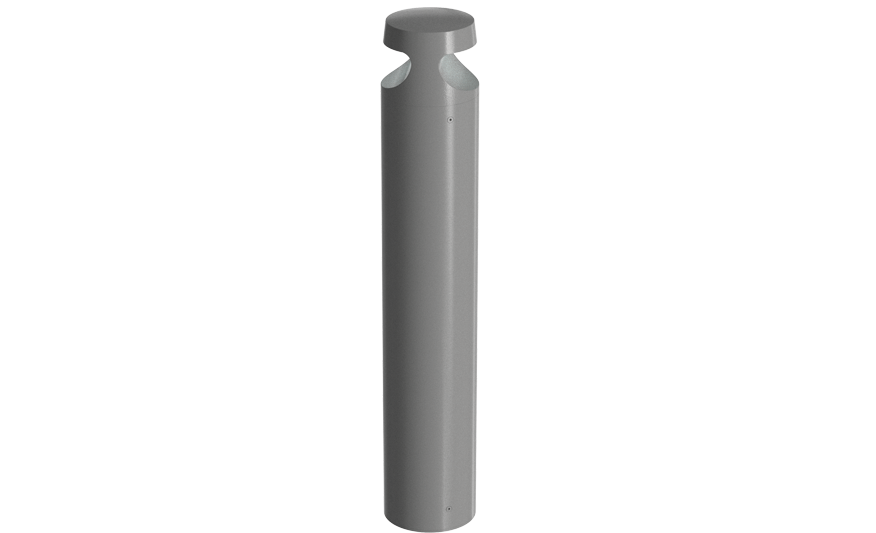

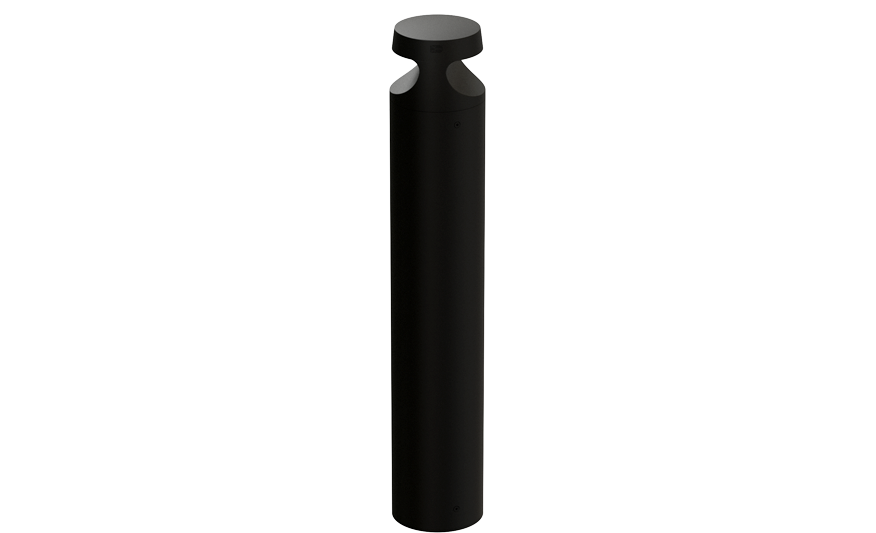

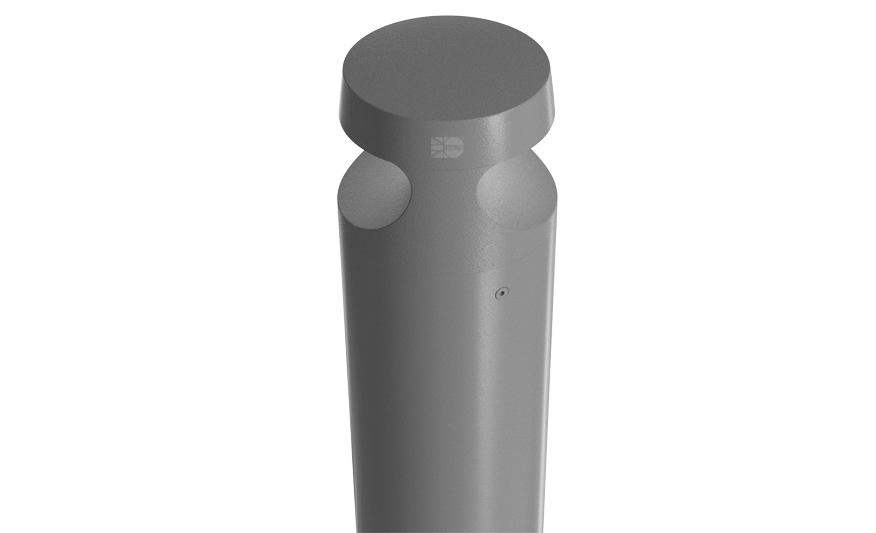

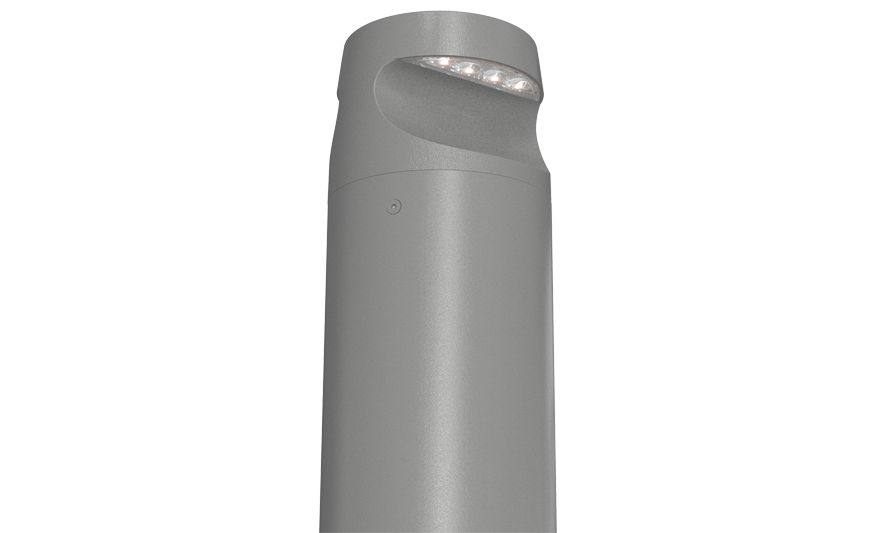

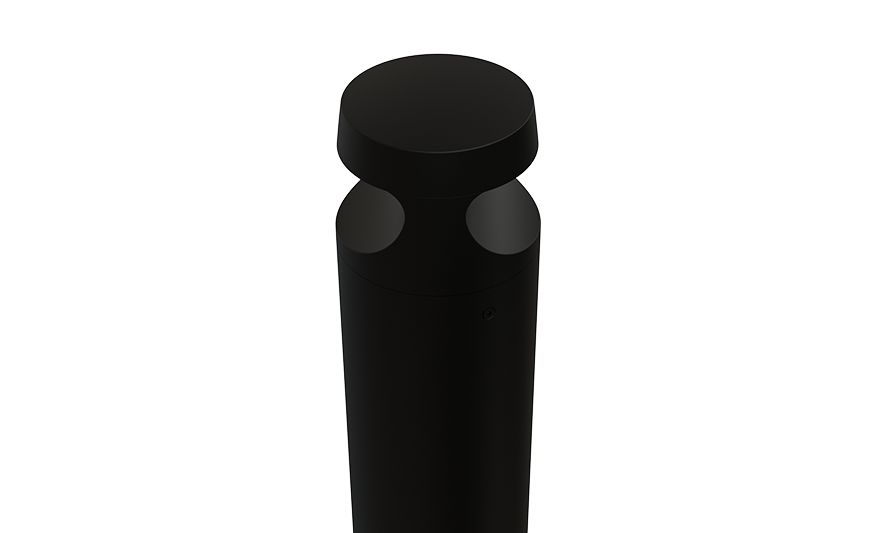

CITY PATH T4

LED Bollard with T4 Area Optic

TM66 Certified options available for specification
Suitable for pathways and pedestrian areas
Gear options including DALI and emergency available
Built for exterior, fit-and-forget installations
IP65 rating for exterior use
Dark Sky Approvals on versions with 3000k and DALI options
Ground mounted
CRI: Ra>80
Available in grey (RAL9006) or black (RAL9005)
Die-cast aluminium body
Polycarbonate lens
Integral driver
Stainless steel fixing screws
Up to 100 lumens per Watt efficacy

≤700 lm

≤7 W

≤100 lm/W

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Colour Temperature (CCTK)

Vision Controls

Emergency

DALI

Polar Curve

Instruction leaflet

Photometric Data

Order Code	Description	lm	W	lm/W	Dia(mm)	H(mm)
CPH70T4NWB	7W - T4 Area Optic - 4000K - Black	700	7	100	180	1000
CPH70T4NWBA3	7W - T4 Area Optic - 4000K - Black	700	7	100	180	1000
CPH70T4NWBD	7W - T4 Area Optic - 4000K - Black	700	7	100	180	1000
CPH70T4NWBD3	7W - T4 Area Optic - 4000K - Black	700	7	100	180	1000
CPH70T4NWBDA3	7W - T4 Area Optic - 4000K - Black	700	7	100	180	1000
CPH70T4NWBDD3	7W - T4 Area Optic - 4000K - Black	700	7	100	180	1000
CPH70T4NWBDM3	7W - T4 Area Optic - 4000K - Black	700	7	100	180	1000
CPH70T4NWBM3	7W - T4 Area Optic - 4000K - Black	700	7	100	180	1000
CPH70T4NWBPC	7W - T4 Area Optic - 4000K - Black	700	7	100	180	1000
CPH70T4NWG	7W - T4 Area Optic - 4000K - Grey	700	7	100	180	1000
CPH70T4NWGA3	7W - T4 Area Optic - 4000K - Grey	700	7	100	180	1000
CPH70T4NWGD	7W - T4 Area Optic - 4000K - Grey	700	7	100	180	1000
CPH70T4NWGD3	7W - T4 Area Optic - 4000K - Grey	700	7	100	180	1000
CPH70T4NWGDA3	7W - T4 Area Optic - 4000K - Grey	700	7	100	180	1000
CPH70T4NWGDD3	7W - T4 Area Optic - 4000K - Grey	700	7	100	180	1000
CPH70T4NWGDM3	7W - T4 Area Optic - 4000K - Grey	700	7	100	180	1000
CPH70T4NWGM3	7W - T4 Area Optic - 4000K - Grey	700	7	100	180	1000
CPH70T4WWB	7W - T4 Area Optic - 3000K - Black	700	7	100	180	1000
CPH70T4WWBA3	7W - T4 Area Optic - 3000K - Black	700	7	100	180	1000
CPH70T4WWBD	7W - T4 Area Optic - 3000K - Black	700	7	100	180	1000
CPH70T4WWBD3	7W - T4 Area Optic - 3000K - Black	700	7	100	180	1000
CPH70T4WWBDA3	7W - T4 Area Optic - 3000K - Black	700	7	100	180	1000
CPH70T4WWBDD3	7W - T4 Area Optic - 3000K - Black	700	7	100	180	1000
CPH70T4WWBDM3	7W - T4 Area Optic - 3000K - Black	700	7	100	180	1000
CPH70T4WWBM3	7W - T4 Area Optic - 3000K - Black	700	7	100	180	1000
CPH70T4WWG	7W - T4 Area Optic - 3000K - Grey	700	7	100	180	1000
CPH70T4WWGA3	7W - T4 Area Optic - 3000K - Grey	700	7	100	180	1000
CPH70T4WWGD	7W - T4 Area Optic - 3000K - Grey	700	7	100	180	1000
CPH70T4WWGD3	7W - T4 Area Optic - 3000K - Grey	700	7	100	180	1000
CPH70T4WWGDA3	7W - T4 Area Optic - 3000K - Grey	700	7	100	180	1000
CPH70T4WWGDD3	7W - T4 Area Optic - 3000K - Grey	700	7	100	180	1000
CPH70T4WWGDM3	7W - T4 Area Optic - 3000K - Grey	700	7	100	180	1000
CPH70T4WWGM3	7W - T4 Area Optic - 3000K - Grey	700	7	100	180	1000
