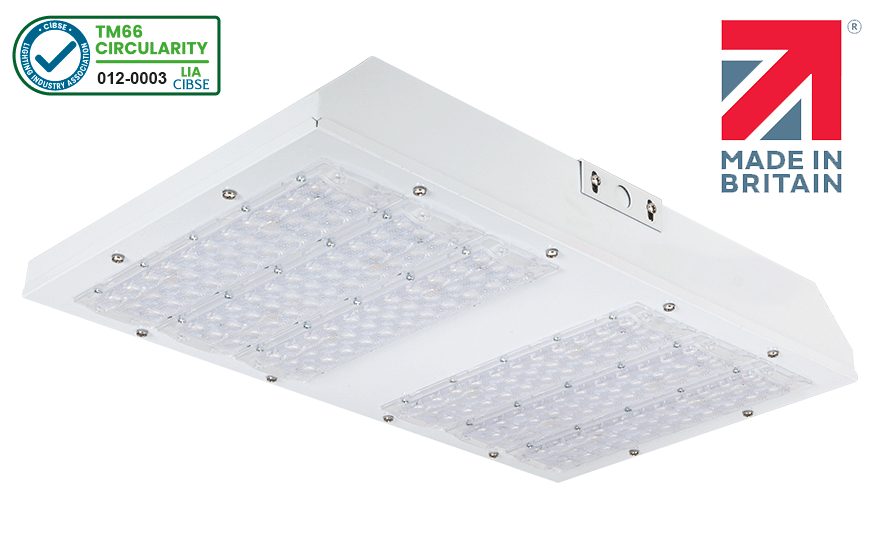

EXPO WP

High Output IP54 Low/High Bay with Wide Beam Optic

Suitable for sports halls, industrial-warehousing and warehousing areas up to 20m mounting height
Tamlite I-Tech optic designed for high optical control
Tamlite I-Tech wide beam optic designed for high optical control
Versatile high/low bay luminaire
Can save up to 60% energy
Gear options including DALI and emergency available
Weatherproof IP54 version of EXPO range with IP65 version also available
Made in Britain
CRI: Ra>80
Steel body finished in white (RAL 9016)
Integral driver
Supplied in neutral white (4000K) LED
Up to 158 lumens per Watt efficacy

≤28K lm

≤227 W

≤158 lm/W

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Colour Temperature (CCTK)

Vision Controls

Emergency

DALI

Order Code	Description	lm	W	lm/W	L(mm)	W(mm)	D(mm)
EXPW630WCW	47W - Wide Beam - 5000K	6300	47	134	330	550	100
EXPW630WCWA3	47W - Wide Beam - 5000K	6300	47	134	330	550	100
EXPW630WCWD	47W - Wide Beam - 5000K	6300	47	134	330	550	100
EXPW630WCWD3	47W - Wide Beam - 5000K	6300	47	134	330	550	100
EXPW630WCWDA3	47W - Wide Beam - 5000K	6300	47	134	330	550	100
EXPW630WCWDD3	47W - Wide Beam - 5000K	6300	47	134	330	550	100
EXPW630WCWDM3	47W - Wide Beam - 5000K	6300	47	134	330	550	100
EXPW630WCWM3	47W - Wide Beam - 5000K	6300	47	134	330	550	100
EXPW630WDL	47W - Wide Beam - 6500K	6300	47	134	330	550	100
EXPW630WDLA3	47W - Wide Beam - 6500K	6300	47	134	330	550	100
EXPW630WDLD	47W - Wide Beam - 6500K	6300	47	134	330	550	100
EXPW630WDLD3	47W - Wide Beam - 6500K	6300	47	134	330	550	100
EXPW630WDLDA3	47W - Wide Beam - 6500K	6300	47	134	330	550	100
EXPW630WDLDD3	47W - Wide Beam - 6500K	6300	47	134	330	550	100
EXPW630WDLDM3	47W - Wide Beam - 6500K	6300	47	134	330	550	100
EXPW630WDLM3	47W - Wide Beam - 6500K	6300	47	134	330	550	100
EXPW630WNW	47W - Wide Beam - 4000K	6300	47	134	330	550	100
EXPW630WNWA3	47W - Wide Beam - 4000K	6300	47	134	330	550	100
EXPW630WNWD	47W - Wide Beam - 4000K	6300	47	134	330	550	100
EXPW630WNWD3	47W - Wide Beam - 4000K	6300	47	134	330	550	100
EXPW630WNWDA3	47W - Wide Beam - 4000K	6300	47	134	330	550	100
EXPW630WNWDD3	47W - Wide Beam - 4000K	6300	47	134	330	550	100
EXPW630WNWDM3	47W - Wide Beam - 4000K	6300	47	134	330	550	100
EXPW630WNWM3	47W - Wide Beam - 4000K	6300	47	134	330	550	100
EXPW960WCW	69W - Wide Beam - 5000K	9600	69	139	330	550	100
EXPW960WCWA3	69W - Wide Beam - 5000K	9600	69	139	330	550	100
EXPW960WCWD	69W - Wide Beam - 5000K	9600	69	139	330	550	100
EXPW960WCWD3	69W - Wide Beam - 5000K	9600	69	139	330	550	100
EXPW960WCWDA3	69W - Wide Beam - 5000K	9600	69	139	330	550	100
EXPW960WCWDD3	69W - Wide Beam - 5000K	9600	69	139	330	550	100
EXPW960WCWDM3	69W - Wide Beam - 5000K	9600	69	139	330	550	100
EXPW960WCWM3	69W - Wide Beam - 5000K	9600	69	139	330	550	100
EXPW960WDL	69W - Wide Beam - 6500K	9600	69	139	330	550	100
EXPW960WDLA3	69W - Wide Beam - 6500K	9600	69	139	330	550	100
EXPW960WDLD	69W - Wide Beam - 6500K	9600	69	139	330	550	100
EXPW960WDLD3	69W - Wide Beam - 6500K	9600	69	139	330	550	100
EXPW960WDLDA3	69W - Wide Beam - 6500K	9600	69	139	330	550	100
EXPW960WDLDD3	69W - Wide Beam - 6500K	9600	69	139	330	550	100
EXPW960WDLDM3	69W - Wide Beam - 6500K	9600	69	139	330	550	100
EXPW960WDLM3	69W - Wide Beam - 6500K	9600	69	139	330	550	100
EXPW960WNW	69W - Wide Beam - 4000K	9600	69	139	330	550	100
EXPW960WNWA3	69W - Wide Beam - 4000K	9600	69	139	330	550	100
EXPW960WNWD	69W - Wide Beam - 4000K	9600	69	139	330	550	100
EXPW960WNWD3	69W - Wide Beam - 4000K	9600	69	139	330	550	100
EXPW960WNWDA3	69W - Wide Beam - 4000K	9600	69	139	330	550	100
EXPW960WNWDD3	69W - Wide Beam - 4000K	9600	69	139	330	550	100
EXPW960WNWDM3	69W - Wide Beam - 4000K	9600	69	139	330	550	100
EXPW960WNWM3	69W - Wide Beam - 4000K	9600	69	139	330	550	100
EXPW1200WCW	76W - Wide Beam - 5000K	12000	76	158	330	550	100
EXPW1200WCWA3	76W - Wide Beam - 5000K	12000	76	158	330	550	100
EXPW1200WCWD	76W - Wide Beam - 5000K	12000	76	158	330	550	100
EXPW1200WCWD3	76W - Wide Beam - 5000K	12000	76	158	330	550	100
EXPW1200WCWDA3	76W - Wide Beam - 5000K	12000	76	158	330	550	100
EXPW1200WCWDD3	76W - Wide Beam - 5000K	12000	76	158	330	550	100
EXPW1200WCWDM3	76W - Wide Beam - 5000K	12000	76	158	330	550	100
EXPW1200WCWM3	76W - Wide Beam - 5000K	12000	76	158	330	550	100
EXPW1200WDL	76W - Wide Beam - 6500K	12000	76	158	330	550	100
EXPW1200WDLA3	76W - Wide Beam - 6500K	12000	76	158	330	550	100
EXPW1200WDLD	76W - Wide Beam - 6500K	12000	76	158	330	550	100
EXPW1200WDLD3	76W - Wide Beam - 6500K	12000	76	158	330	550	100
EXPW1200WDLDA3	76W - Wide Beam - 6500K	12000	76	158	330	550	100
EXPW1200WDLDD3	76W - Wide Beam - 6500K	12000	76	158	330	550	100
EXPW1200WDLDM3	76W - Wide Beam - 6500K	12000	76	158	330	550	100
EXPW1200WDLM3	76W - Wide Beam - 6500K	12000	76	158	330	550	100
EXPW1200WNW	76W - Wide Beam - 4000K	12000	76	158	330	550	100
EXPW1200WNWA3	76W - Wide Beam - 4000K	12000	76	158	330	550	100
EXPW1200WNWD	76W - Wide Beam - 4000K	12000	76	158	330	550	100
EXPW1200WNWD3	76W - Wide Beam - 4000K	12000	76	158	330	550	100
EXPW1200WNWDA3	76W - Wide Beam - 4000K	12000	76	158	330	550	100
EXPW1200WNWDD3	76W - Wide Beam - 4000K	12000	76	158	330	550	100
EXPW1200WNWDM3	76W - Wide Beam - 4000K	12000	76	158	330	550	100
EXPW1200WNWM3	76W - Wide Beam - 4000K	12000	76	158	330	550	100
EXPW1630WCW	115W - Wide Beam - 5000K	16300	115	142	330	550	100
EXPW1630WCWA3	115W - Wide Beam - 5000K	16300	115	142	330	550	100
EXPW1630WCWD	115W - Wide Beam - 5000K	16300	115	142	330	550	100
EXPW1630WCWD3	115W - Wide Beam - 5000K	16300	115	142	330	550	100
EXPW1630WCWDA3	115W - Wide Beam - 5000K	16300	115	142	330	550	100
EXPW1630WCWDD3	115W - Wide Beam - 5000K	16300	115	142	330	550	100
EXPW1630WCWDM3	115W - Wide Beam - 5000K	16300	115	142	330	550	100
EXPW1630WCWM3	115W - Wide Beam - 5000K	16300	115	142	330	550	100
EXPW1630WDL	115W - Wide Beam - 6500K	16300	115	142	330	550	100
EXPW1630WDLA3	115W - Wide Beam - 6500K	16300	115	142	330	550	100
EXPW1630WDLD	115W - Wide Beam - 6500K	16300	115	142	330	550	100
EXPW1630WDLD3	115W - Wide Beam - 6500K	16300	115	142	330	550	100
EXPW1630WDLDA3	115W - Wide Beam - 6500K	16300	115	142	330	550	100
EXPW1630WDLDD3	115W - Wide Beam - 6500K	16300	115	142	330	550	100
EXPW1630WDLDM3	115W - Wide Beam - 6500K	16300	115	142	330	550	100
EXPW1630WDLM3	115W - Wide Beam - 6500K	16300	115	142	330	550	100
EXPW1630WNW	115W - Wide Beam - 4000K	16300	115	142	330	550	100
EXPW1630WNWA3	115W - Wide Beam - 4000K	16300	115	142	330	550	100
EXPW1630WNWD	115W - Wide Beam - 4000K	16300	115	142	330	550	100
EXPW1630WNWD3	115W - Wide Beam - 4000K	16300	115	142	330	550	100
EXPW1630WNWDA3	115W - Wide Beam - 4000K	16300	115	142	330	550	100
EXPW1630WNWDD3	115W - Wide Beam - 4000K	16300	115	142	330	550	100
EXPW1630WNWDM3	115W - Wide Beam - 4000K	16300	115	142	330	550	100
EXPW1630WNWM3	115W - Wide Beam - 4000K	16300	115	142	330	550	100
EXPW2100WCW	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWA3	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWA3V2H	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWD	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWD3	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWD3V2H	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWDA3	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWDA3V3H	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWDD3	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWDD3V3H	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWDM3	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWDM3V3H	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWDV3H	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWM3	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWM3V2H	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WCWV2H	156W - Wide Beam - 5000K	21000	156	135	330	550	100
EXPW2100WDL	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLA3	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLA3V2H	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLD	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLD3	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLD3V2H	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLDA3	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLDA3V3H	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLDD3	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLDD3V3H	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLDM3	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLDM3V3H	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLDV3H	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLM3	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLM3V2H	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WDLV2H	156W - Wide Beam - 6500K	21000	156	135	330	550	100
EXPW2100WNW	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWA3	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWA3V2H	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWD	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWD3	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWD3V2H	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWDA3	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWDA3V3H	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWDD3	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWDD3V3H	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWDM3	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWDM3V3H	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWDV3H	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWM3	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWM3V2H	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2100WNWV2H	156W - Wide Beam - 4000K	21000	156	135	330	550	100
EXPW2400WCW	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWA3	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWA3V2H	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWD	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWD3	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWD3V2H	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWDA3	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWDA3V3H	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWDD3	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWDD3V3H	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWDM3	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWDM3V3H	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWDV3H	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWM3	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWM3V2H	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WCWV2H	183W - Wide Beam - 5000K	24000	183	131	330	550	100
EXPW2400WDL	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLA3	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLA3V2H	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLD	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLD3	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLD3V2H	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLDA3	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLDA3V3H	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLDD3	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLDD3V3H	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLDM3	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLDM3V3H	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLDV3H	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLM3	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLM3V2H	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WDLV2H	183W - Wide Beam - 6500K	24000	183	131	330	550	100
EXPW2400WNW	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWA3	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWA3V2H	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWD	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWD3	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWD3V2H	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWDA3	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWDA3V3H	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWDD3	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWDD3V3H	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWDM3	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWDM3V3H	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWDV3H	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWM3	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWM3V2H	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2400WNWV2H	183W - Wide Beam - 4000K	24000	183	131	330	550	100
EXPW2600WCW	204W - Wide Beam - 5000K	26000	204	127	330	550	100
EXPW2600WCWD	204W - Wide Beam - 5000K	26000	204	127	330	550	100
EXPW2600WCWDV3H	204W - Wide Beam - 5000K	26000	204	127	330	550	100
EXPW2600WCWV2H	204W - Wide Beam - 5000K	26000	204	127	330	550	100
EXPW2600WDL	204W - Wide Beam - 6500K	26000	204	127	330	550	100
EXPW2600WDLD	204W - Wide Beam - 6500K	26000	204	127	330	550	100
EXPW2600WDLDV3H	204W - Wide Beam - 6500K	26000	204	127	330	550	100
EXPW2600WDLV2H	204W - Wide Beam - 6500K	26000	204	127	330	550	100
EXPW2600WNW	204W - Wide Beam - 4000K	26000	204	127	330	550	100
EXPW2600WNWD	204W - Wide Beam - 4000K	26000	204	127	330	550	100
EXPW2600WNWDV3H	204W - Wide Beam - 4000K	26000	204	127	330	550	100
EXPW2600WNWV2H	204W - Wide Beam - 4000K	26000	204	127	330	550	100
EXPW2800WCW	227W - Wide Beam - 5000K	28000	227	123	330	550	100
EXPW2800WCWD	227W - Wide Beam - 5000K	28000	227	123	330	550	100
EXPW2800WCWDV3H	227W - Wide Beam - 5000K	28000	227	123	330	550	100
EXPW2800WCWV2H	227W - Wide Beam - 5000K	28000	227	123	330	550	100
EXPW2800WDL	227W - Wide Beam - 6500K	28000	227	123	330	550	100
EXPW2800WDLD	227W - Wide Beam - 6500K	28000	227	123	330	550	100
EXPW2800WDLDV3H	227W - Wide Beam - 6500K	28000	227	123	330	550	100
EXPW2800WDLV2H	227W - Wide Beam - 6500K	28000	227	123	330	550	100
EXPW2800WNW	227W - Wide Beam - 4000K	28000	227	123	330	550	100
EXPW2800WNWD	227W - Wide Beam - 4000K	28000	227	123	330	550	100
EXPW2800WNWDV3H	227W - Wide Beam - 4000K	28000	227	123	330	550	100
EXPW2800WNWV2H	227W - Wide Beam - 4000K	28000	227	123	330	550	100

Lighting for The Planet

Lighting for Wellbeing

Vision Lighting Controls

The T-Word Blog

EXPO WP

High Output IP54 Low/High Bay with Wide Beam Optic

Product Filter
